Best way to attach sliders?

General Tech Talk

Moderators: toaddog, TWISTY, V8Patrol, Moderators

Forum rules
Post Reply
Posts: 459
Joined: Tue Nov 12, 2002 9:44 am
Location: canberra

Best way to attach sliders?

Post by buddha »

Whats the best way to attach sliders?

I am just about to make some for my GQ but i dont have a bodylift, so the U shaped clamping way isnt going to work.
Dont mind the idea of welding to the chassie rail, but i can understand there could be pressure placed on the chassie rail and last thing i need is for it to rip off with some rail intact.
What about bolting through the chassie rail to some steel plate on the other side similar to sandwiching it in?
-------------------------------------------------------
1994 GQ DX PATROL,chopped, DTS Turbo, 4" Dobinson lift, lockers, reduction gears, 38'' Maxxis
Top
Posts: 8556
Joined: Mon Jun 13, 2005 9:34 pm
Location: Sydney

Post by RockyF75 »

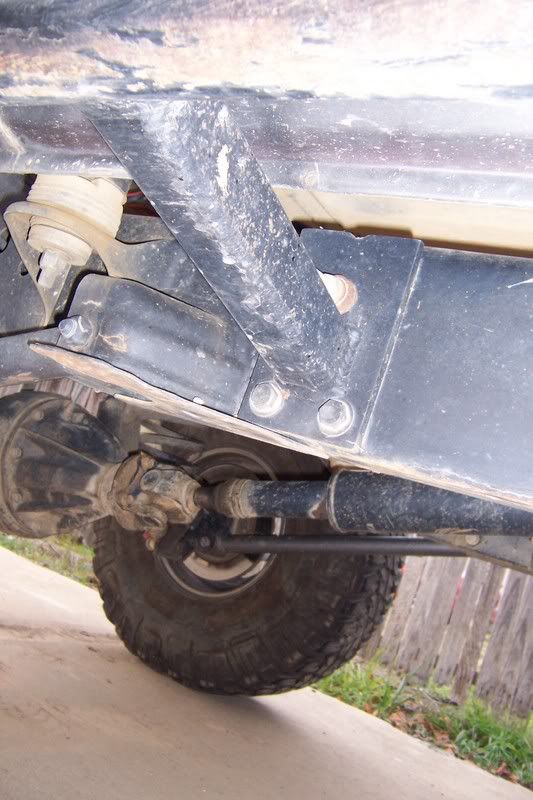

Pretty self explanatory pics, but sandwich the chassis between 2 steel plates with bolts running over top and bottom of the chassis, slider's welded to one of these plates.



60 + Turbo, 33"s :armsup:
Top
Posts: 6221
Joined: Tue May 31, 2005 12:51 pm
Location: Sydney

Post by v840 »

Fishplating. Cut up some sheet steel in this shape: <=> and weld to the chassis. Then weld your sliders to this.
If you use decent thickness sheet you should adequately reinforce your chassis so that it wont rip the chassis if you land heavily on your sliders. Ive mounted quite a few sets of sliders this way and have yet to have any problems.

Incidentally, Ive made a few sets that are bolt-on too. To my knowledge, none of the people Ive made them for have ever taken them off. Just weld them on and be done with it.
|^^^^^^^^^^^^^^| ||
|.........SUZUKI..........| ||'|";, ____.
|_..._..._______===|=||_|__|..., ]
(@)'(@)"""''"**|(@)(@)*****''(@)
Top
Posts: 459
Joined: Tue Nov 12, 2002 9:44 am
Location: canberra

Post by buddha »

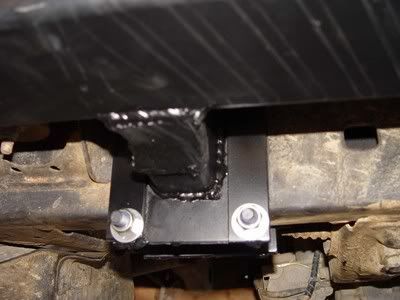

what about through the chassie like this. Havnt looked but dont think theres too much room to go over the top of the rail.

-------------------------------------------------------
1994 GQ DX PATROL,chopped, DTS Turbo, 4" Dobinson lift, lockers, reduction gears, 38'' Maxxis
Top
Posts: 93
Joined: Fri Jul 28, 2006 11:17 pm
Location: melbourne

Post by full-boost »

i thought it was illegal to weld to the chasis? plus, wont the heat weaken it at that point?
Top
Posts: 2820
Joined: Sun May 25, 2003 10:04 am
Location: Redbank Plains, QLD

Post by Daisy »

buddha wrote:what about through the chassie like this. Havnt looked but dont think theres too much room to go over the top of the rail.

It'll either seriously damage the chassis or rip a bolt thru it if it doesnt have crush tubes in it.

Fishplating would have been ideal as well to strengthen that area.
custom bar work, 4x4 parts, trailers, anything out of steel/alloy :D
Top
Posts: 1836
Joined: Wed Aug 11, 2004 10:41 am
Location: Brisbane

Post by badger »

Mine go over the rail with no body lift. The only way id ever do it is with u bolts.
1hd-fte 5 speed tiptronic 105 series
78 series troopy for work
gu ute play truck For sale
FTE 80 series sahara Sold

i think i have a problem
Top
Posts: 2601
Joined: Tue Jul 13, 2004 8:02 pm
Location: warner, brisbane

Post by chunderlicious »

fishplates thare are tapped for bolts (larger area and thicker fishplate) which isnt the best for the chassis as 8mm steel on 4mm chassis isnt the best idea ever but its better than no crush tubes going through the chassis or just fishplate and weld them on.
turbos are nice but i'd rather be blown
Top
Posts: 2944
Joined: Tue Feb 11, 2003 5:47 pm
Location: Manjimup, Western Australia

Contact:
Contact ausyota

Post by ausyota »

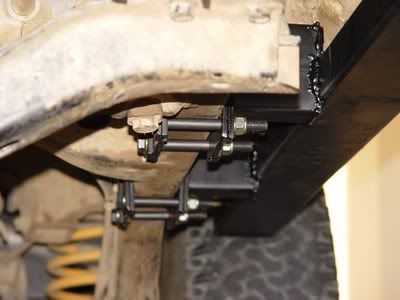

Heres how I did mine.
R.I.P Brock Fontanini 28-3-06 - 16-2-08
www.teamcarnage.net
Top
Posts: 14668
Joined: Mon Aug 29, 2005 7:10 pm
Location: western shitney

Post by j-top paj »

bolts would be the way to go. but not bolting through the chassis.
i would weld to a chassis before i drill through one.
just let it cool down slowly, not putting water on it
Banzy wrote:Dial up internet.........you'd post something and come back 2 beers later to see if it loaded.
my GU
Top
