spacing trans x member

Post by rockcrawler31 »

I've noticed that my front driveshaft is interfering with the trans x member and i'd like to space my trans x member down by 25mm using aluminium blocks. The only drama i've run into is that the gear box mount seems to have fixed bolts (i havn't got the cross member off yet). How would i go about securing the trans to the crossmember once i have put the spacer in?
http://www.populationparty.org.au/
Top
Posts: 1715
Joined: Tue Sep 06, 2005 8:38 pm
Location: at my wits end

Post by RED60 »

Make the spacers from a long steel nut the length you want to space the transfer. You may have to cut the existing bolts so they are half the length of the new long nuts. Tighten long nuts up onto the existing (shortened maybe) bolts. Fit crossmember. Fit new bolts that become tight before they bottom out on existing bolts. I would also locktite or safety wire the new nuts/bolts to be sure they can't come undone. The longer the new nuts can be the better cause that will give the greatest engagement between nut n bolts..... :cool: :cool:
Show me the money..SHOW ME THE MONEY
Top
Posts: 1442
Joined: Tue Jun 27, 2006 8:30 pm
Location: nsw

Post by 75 cruser »

i had this problem with my 75 and just ended up turning the drive shaft around so the slip yoke was at the gear box end and thier was a heap of clearance to the cross member, just check which way the shaft is in first

rob
come on move over and let the 75 through
Top
Posts: 567
Joined: Fri Jul 20, 2007 7:37 am
Location: Panama

Contact:
Contact Tapage

Post by Tapage »

This solution don't afect the engine line ?( inclination )

Just wondering if you use a CV in your front DS ( t-case side ) don't help ?
HJ-60 2H-T Intercoled [url=http://4x4panama.com/foros/viewtopic.php?t=2770]Tencha[/url]
HDJ-80 1HD-T Stock so far " Marilu "
Panama
Top
Posts: 3099
Joined: Wed Dec 11, 2002 10:55 am
Location: Central Queensland

Post by BundyRumandCoke »

Are you saying the gearbox has studs in it, and you put nuts on after fitting the cross member? Try removing the studs and either replace with longer ones, or use longer bolts with the same thread.
Mud makes excellent toothpaste.
Top
Posts: 212
Joined: Tue Sep 07, 2004 9:28 am
Location: Panama, Central America

Post by Mario »

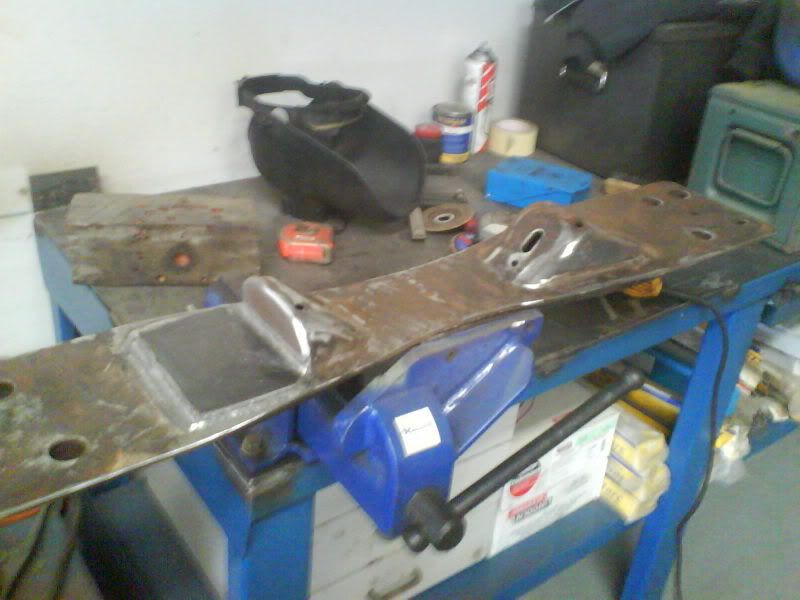

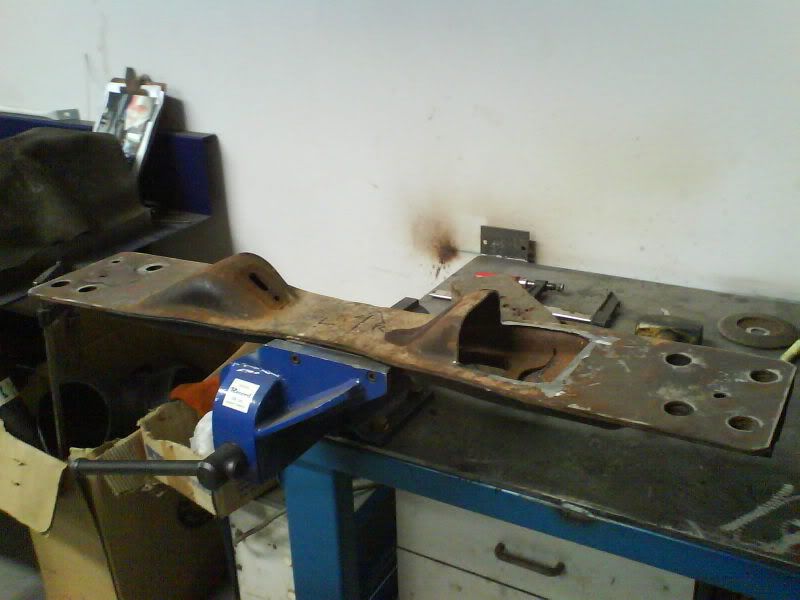

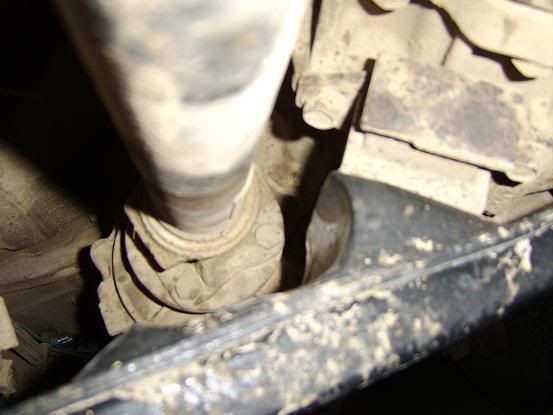

I had that issue after a 6" lift. Solved it using this mod I found right here in this forum:



GQ TD42, OME 5" suspension, 3" bodylift, shimmed V6 Pathfinder LSD front, ARB rear, Safari snorkel, custom front and rear bumpers, Nissan 4.625 R&P, 37" MTRs.
Panama, Central America
Top
Posts: 3725
Joined: Wed Jun 30, 2004 1:45 pm
Location: Blue Mountains, or on a rig somewhere in bumf*ck idaho

Post by rockcrawler31 »

thanks all.

i reckon i will go the long nuts trick (doesn't that sound sus :lol: )

I vaguely recall someone saying there being a drama with turning the drive shaft around.

For the other questions

There is a rubberised mount between the trans and the x member, there are fixed studs on the mount

i won't be affecting the angle of the trans/motor as i'm spacing the x member down only.

cheers all
