Help Differential ...

Post by Donald2 »

Hello i need some help, I have bouth front and rear differential from a Nissan Patrol i dont know Year and model :(. is there any way of help to identifie them .

I think they are a Dana 30 @$%#$ . i will put photos tonigth


thank you ...
Top
Posts: 443
Joined: Tue Jan 04, 2005 10:08 pm
Location: sydney

Post by mattsluxtruck »

If they come out of a Patrol they wont be Danas. Are they set up for leaf or coil springs? That gives us something to start with.
Top
Posts: 51
Joined: Sat May 01, 2004 5:47 pm
Location: GREECE / RHODES ISLAND

Contact:
Contact Donald2

Post by Donald2 »

They are from a Patrol with leafs






If this can help
Top
User avatar
jav
Posts: 715
Joined: Wed Dec 03, 2003 10:19 am
Location: walloon, queensland

Post by jav »

out of mq, screwy's the mq diff expert.
Top
Posts: 51
Joined: Sat May 01, 2004 5:47 pm
Location: GREECE / RHODES ISLAND

Contact:
Contact Donald2

Post by Donald2 »

MQ is it the same with 160 Patrol ? ? ? Because i am going to order some parts ( oil sealing ) ...
Top
User avatar
jav
Posts: 715
Joined: Wed Dec 03, 2003 10:19 am
Location: walloon, queensland

Post by jav »

front diff is a C200, hope this helps.
Top
Posts: 51
Joined: Sat May 01, 2004 5:47 pm
Location: GREECE / RHODES ISLAND

Contact:
Contact Donald2

Post by Donald2 »

Thank you i thing it will help a lot
Top
Posts: 2072
Joined: Sun Feb 11, 2007 4:50 pm
Location: Hobart

Contact:
Contact macca81

Post by macca81 »

cant see the pics on my comp for some reason :bad-words:

the MQ patrol is the 160 patrol, so diffs will be the same.

the front will def be a C200.
rear will be either h233 or h260.

look in the MQ bible, theres a few threads in there that will tell you, under the drivelines heading
[quote="Barnsey"]
Bronwyn Bishop does it for me.[/quote]
Top
Posts: 1949
Joined: Wed Oct 23, 2002 7:44 am
Location: Melbourne, Australia

Post by MKPatrolGuy »

macca81 wrote:cant see the pics on my comp for some reason :bad-words:

the MQ patrol is the 160 patrol, so diffs will be the same.

the front will def be a C200.
rear will be either h233 or h260.

look in the MQ bible, theres a few threads in there that will tell you, under the drivelines heading
If it is a European Patrol it could also have a C200 in the rear.
[size=100][url=http://www.vickrawlers.com/]VicKrawlers.com[/url]
[url=http://www.drfwdc.org.au/]Dandenong Ranges 4wd Club[/url][/size]
Top
Posts: 2072
Joined: Sun Feb 11, 2007 4:50 pm
Location: Hobart

Contact:
Contact macca81

Post by macca81 »

this is true, but they are very few and far between here...


p.s. if it is a c200 rear and it has a LSD in it... can i have it? :D pleeeeaaaase!?!? :D
[quote="Barnsey"]
Bronwyn Bishop does it for me.[/quote]
Top
Posts: 1949
Joined: Wed Oct 23, 2002 7:44 am
Location: Melbourne, Australia

Post by MKPatrolGuy »

macca81 wrote:this is true, but they are very few and far between here...


p.s. if it is a c200 rear and it has a LSD in it... can i have it? :D pleeeeaaaase!?!? :D

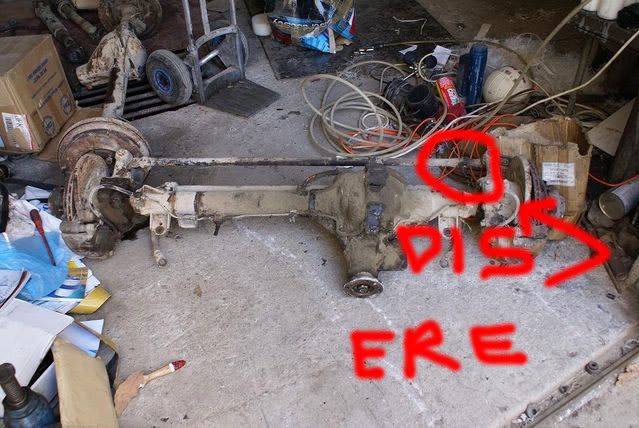

Looking at the pics, it is a LHD front diff and the rear diff looks like it has a removable cover plate. Most likely making the diffs european and a C200. :D
[size=100][url=http://www.vickrawlers.com/]VicKrawlers.com[/url]
[url=http://www.drfwdc.org.au/]Dandenong Ranges 4wd Club[/url][/size]
Top
Posts: 2072
Joined: Sun Feb 11, 2007 4:50 pm
Location: Hobart

Contact:
Contact macca81

Post by macca81 »

how can you tell its LHD? it looks identical to my front diff.... :?


but yes, the rear does look like it has a removable plate, my bad :oops:
[quote="Barnsey"]
Bronwyn Bishop does it for me.[/quote]
Top
Posts: 1109
Joined: Sat Feb 26, 2005 8:46 am
Location: Geraldton West Oz

Post by Hoppy11 »

macca81 wrote:how can you tell its LHD? it looks identical to my front diff.... :?


but yes, the rear does look like it has a removable plate, my bad :oops:
The tierod end that accepts the draglink is on the rightside, right hand drive trucks have em on the left
Hoppy
Top
Posts: 1109
Joined: Sat Feb 26, 2005 8:46 am
Location: Geraldton West Oz

Post by Hoppy11 »

Hoppy
Top
Posts: 51
Joined: Sat May 01, 2004 5:47 pm
Location: GREECE / RHODES ISLAND

Contact:
Contact Donald2

Post by Donald2 »

Another help pls

I want to know how many kilos are the axles C200

how many kilos is the front ? . ..
how many kilos is the back ? ...
Top
Posts: 51
Joined: Sat May 01, 2004 5:47 pm
Location: GREECE / RHODES ISLAND

Contact:
Contact Donald2

Post by Donald2 »

macca81 wrote:this is true, but they are very few and far between here...


p.s. if it is a c200 rear and it has a LSD in it... can i have it? :D pleeeeaaaase!?!? :D

Well rear axles it dosent look like an lsd in it , next week i am goint to take it out to fit a homemade locker . . .
