Hydro assist on patrol

Post by **Nelso** » Thu Apr 17, 2008 11:38 am

Can people post up pictures of where you have tapped a Patrol steering box. I have an idea where to drill and tap but just want to be 100% sure 'cause I'm paranoid about farking it up.

Post by **1MadEngineer** » Fri Apr 18, 2008 9:04 am

sorry cant get to the truck till over the w'end, but the same principles apply!!!! the powerhead (the bit at the front that diverts fluid) has 2 outputs. 1 is a hole which applies pressure directly to the piston (front face of the cavity) and the other goes through an internal port to the back of the piston (comes out near the sector shaft cavity) .#1 is on the top about ~10 from the powerhead bolting face, #2 can be anywhere around the sector shaft cavity or at the rear of the 'drive' main cavity (the end of the barrel, in cylinder terms). Hope this helps!!!

ps, i hope to be doing some nissan pump flow testing in the next few weeks, so that i can work out how to trick them right up!!! i will let you know how we go!!

Post by **Nelso** » Sat Apr 19, 2008 12:43 am

Every extra bit of info I read helps!! I would still like to see one done first before I go to town with the drill though, just to ease my mind. If you could get a couple of pics whenever you do get to the car that would be awesome and I am very interested to find out about the pump mods so can't wait for your report on that.

Still got to buy the ram and hoses yet so there is no hurry. I'm just sussing out whether I am better off importing a kit or if someone can do them for a reasonable price over here.

Post by **Bartso** » Sat Apr 19, 2008 10:30 am

i have a GQ steer box tapped for hydro assist i will take photo's today

Post by **Nelso** » Sat Apr 19, 2008 10:59 am

Bartso wrote:i have a GQ steer box tapped for hydro assist i will take photo's today

That would be great, thanks Bartso. If I was thinking straight I should have stuck my head under your guard last weekend and had a look.

Post by **Bartso** » Sat Apr 19, 2008 6:35 pm

Nelso wrote:
Bartso wrote:i have a GQ steer box tapped for hydro assist i will take photo's today
That would be great, thanks Bartso. If I was thinking straight I should have stuck my head under your guard last weekend and had a look.

that would of been no good mate i run full hydro

Post by **(EST)MahviaDeTyrk** » Tue Apr 22, 2008 1:09 am

Bartso wrote:i have a GQ steer box tapped for hydro assist i will take photo's today

I think MK and GQ steer boxes are the same - so... photos and measurements please

Post by **Bartso** » Tue Apr 22, 2008 2:25 pm

yep i've been slack will do

Post by **Nelso** » Wed Apr 30, 2008 8:44 pm

Any pics yet?

Post by **Bartso** » Mon May 05, 2008 7:22 pm

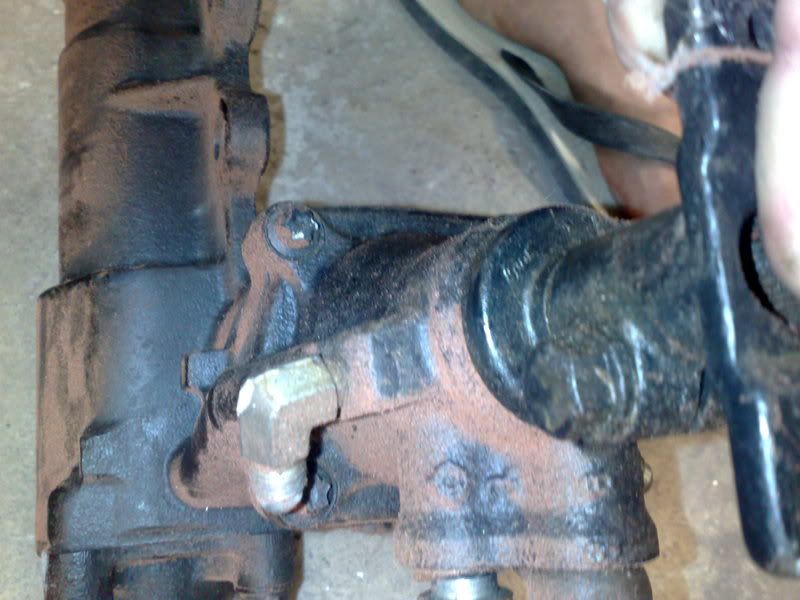

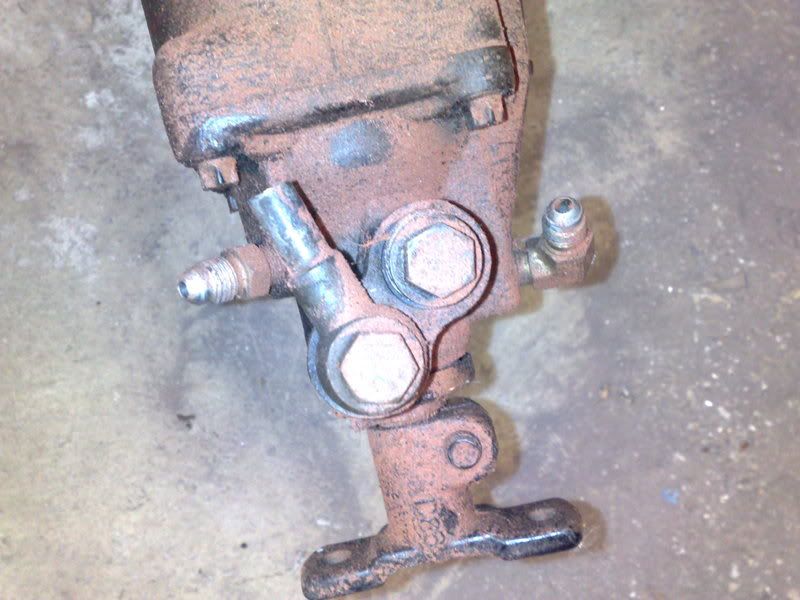

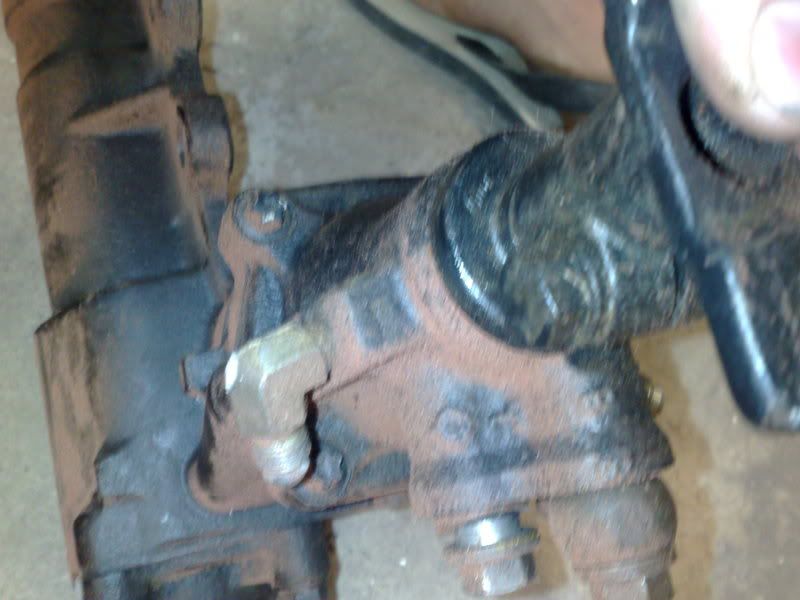

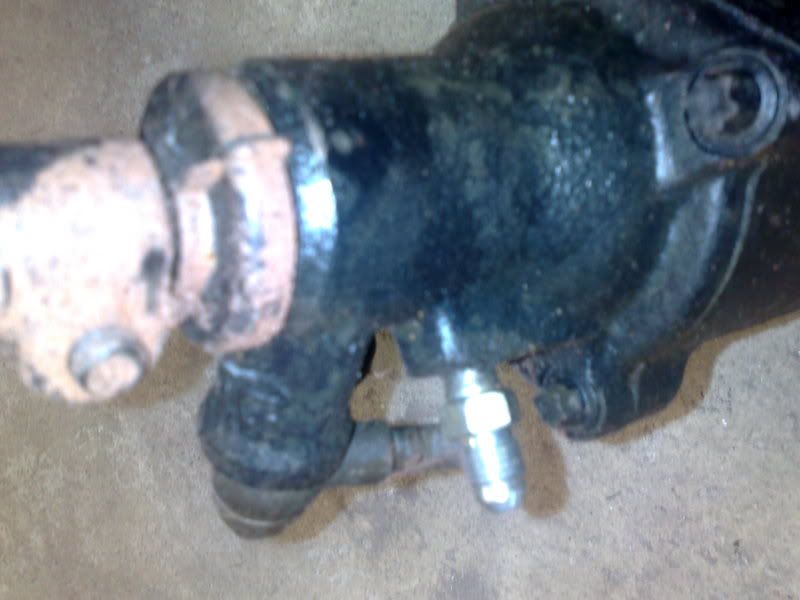

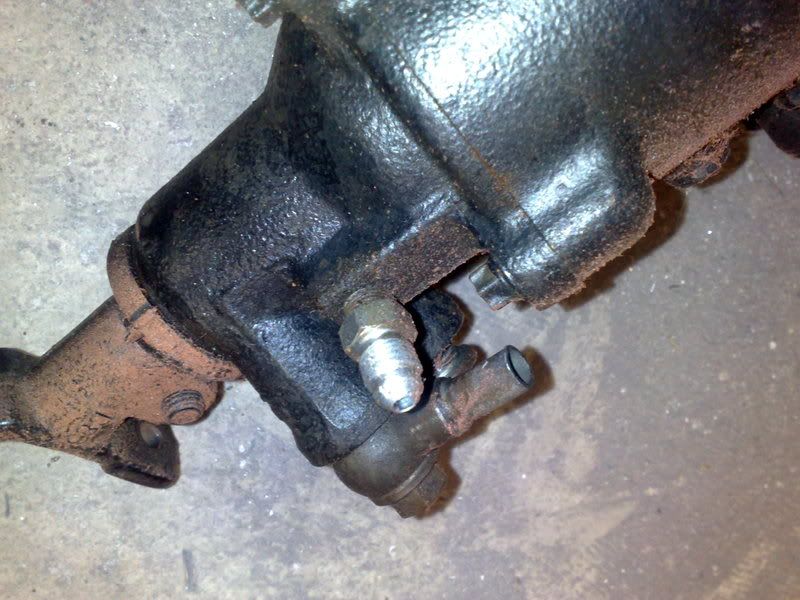

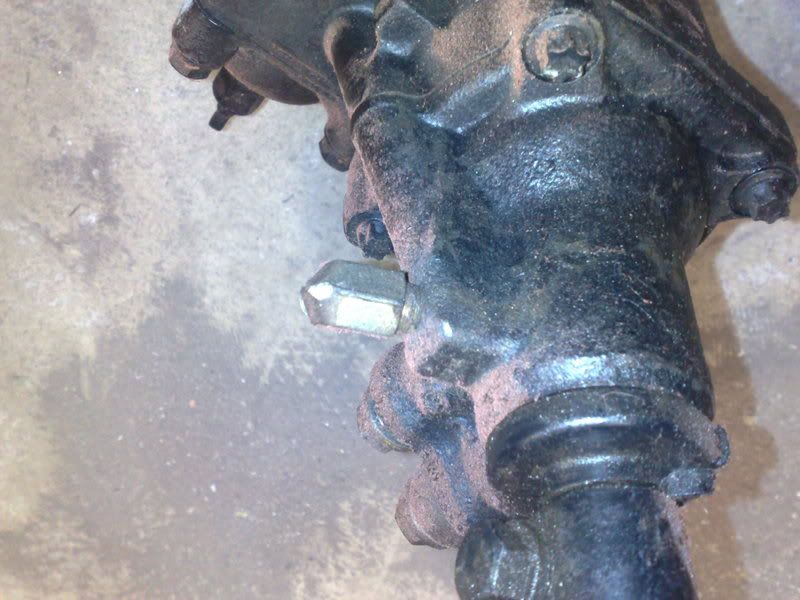

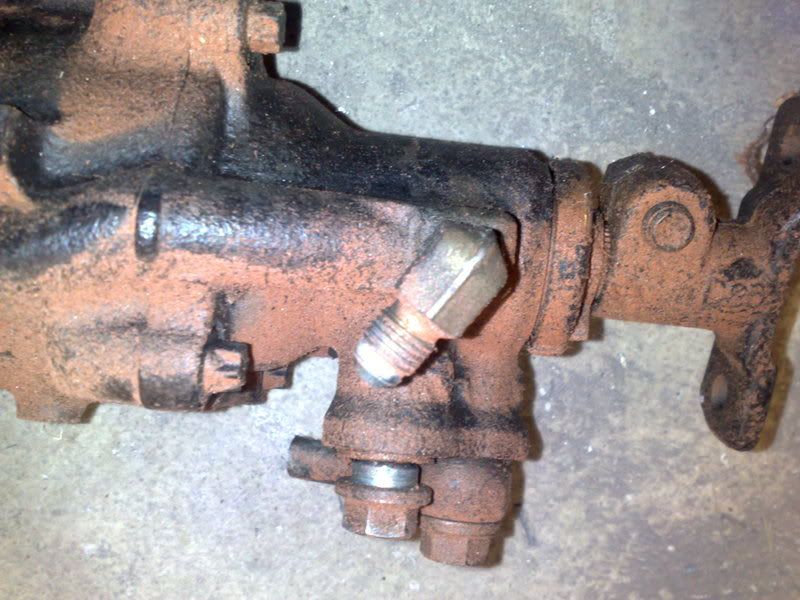

here are the long awaited pics sorry

[/url]

Post by **(EST)MahviaDeTyrk** » Mon May 05, 2008 10:28 pm

Thanks

Post by **Nelso** » Mon May 05, 2008 10:31 pm

Awesome, thanks Bartso.

Post by **Mousie** » Tue May 06, 2008 11:06 pm

jeabus thats just to easy...
you dont know the depth and drill bit/tap size by any chance?
maby asking to mutch info here

cheers

Post by **giantracing** » Thu May 08, 2008 8:57 am

hey bartso. how you been. a quick question. what is the delay with the ram. its not the same as the box is it.

Post by **Bartso** » Thu May 08, 2008 5:11 pm

good mate i didn't notice any delay but am probable wrong i only ran it for one comp then went for full hydro
