ford alternator into gq

Post by **cooki_monsta** » Fri Jun 13, 2008 10:10 pm

ok so i have an el ex chaser alt. its 110A made by bosch and a little larger then std, just wondering if anyone has fitted these to their pat. and also how they mounted it to the car and pref a wire pinout of the ford alt. i need grey/red and yellow. From memory the yellow is constant power

Post by **tj81** » Fri Jun 13, 2008 10:13 pm

Wiring should plug straight in !!

All you need to do is put on a larger ring fitting and plug in.

Bottom mounts you will need to make spacers for, and either use the ford bolts to suit or alter the bolt mounts to suit GQ bolts.

Top mount from memory needs some sort of different bolt.

Post by **cooki_monsta** » Sat Jun 14, 2008 1:02 pm

thanks, the wiring loom does plug in, i have got the new bolt for the upper mount, but lower mounts i am a bit lost with, ill probably find out when i take it off 2moro.

thanks for your help!

Post by **blkmav** » Sat Jun 14, 2008 1:10 pm

Post pics when done

Post by **steveoo** » Sat Jun 14, 2008 2:49 pm

hey if you want you can come over and have a look at mine if you wanted too... (i am only down the road in forest hill)

its been working for the last 2 months now

Post by **micks troll** » Sat Jun 14, 2008 9:04 pm

Just make sure the spacer line the belts up otherwise you'll prematureally wear them out! It's one of the best mods I've done except mines a 140amp leese neville alternator. Plenty of juice

Post by **cooki_monsta** » Sun Jun 15, 2008 12:45 am

hey thanks stevoo but im pre occupied swapping lift kits, anyhow i was just wondering what you did to get the bottom mounts to bolt up to your bracket? any custom fab as i need it running the same day, thanks, oh and there will be pics when i am finished, with a write up

Post by **LOCKEE** » Sun Jun 15, 2008 7:31 am

Mine is off the car at the moment with the modified bracket if you want to copy it.

You will also need longer belts.

East Burwood.

Post by **steveoo** » Mon Jun 16, 2008 5:54 pm

you have to cut the standard lower braket and bring the 2 bolt holes closer together and then it fits in.

This then keeps the standard belt.

Post by **cooki_monsta** » Mon Jun 16, 2008 10:26 pm

i found an easier temporary fix, flip it, then it bolts up

Post by **steveoo** » Mon Jun 16, 2008 10:35 pm

but you really need to make sure you have the 3 holes all in use since of the vibration

Post by **cooki_monsta** » Tue Jun 17, 2008 3:47 pm

yea im making a bracket to bolt to the top and hold it onto the engine, once i find a suitable location and a decent bit of steel

then it would save me cutting things up, anyhow when i get around to making a photobucket account ill post my pictures up

Post by **tj81** » Tue Jun 17, 2008 4:37 pm

cooki_monsta wrote:yea im making a bracket to bolt to the top and hold it onto the engine, once i find a suitable location and a decent bit of steel then it would save me cutting things up, anyhow when i get around to making a photobucket account ill post my pictures up

given the popularity of this conversion, and the regular questions being asked about bolt in replacement ones, i think you would find yourself being thanked by many many people !

Post by **LOCKEE** » Tue Jun 17, 2008 5:34 pm

Anybody want to buy a rebuilt Ford 110 amp Alternator with all the mods done?

Will take your std GQ TB42 alternator as a changeover?

PM me.

East Burwood Melbourne

Post by **cooki_monsta** » Tue Jun 17, 2008 7:41 pm

its a very cheap and, once im finished proving it, bolt in style upgrade to the standard , pitiful charging system of the patrol, and for around $100 who wouldnt want to upgrade?

Post by **cooki_monsta** » Sat Jun 21, 2008 2:00 pm

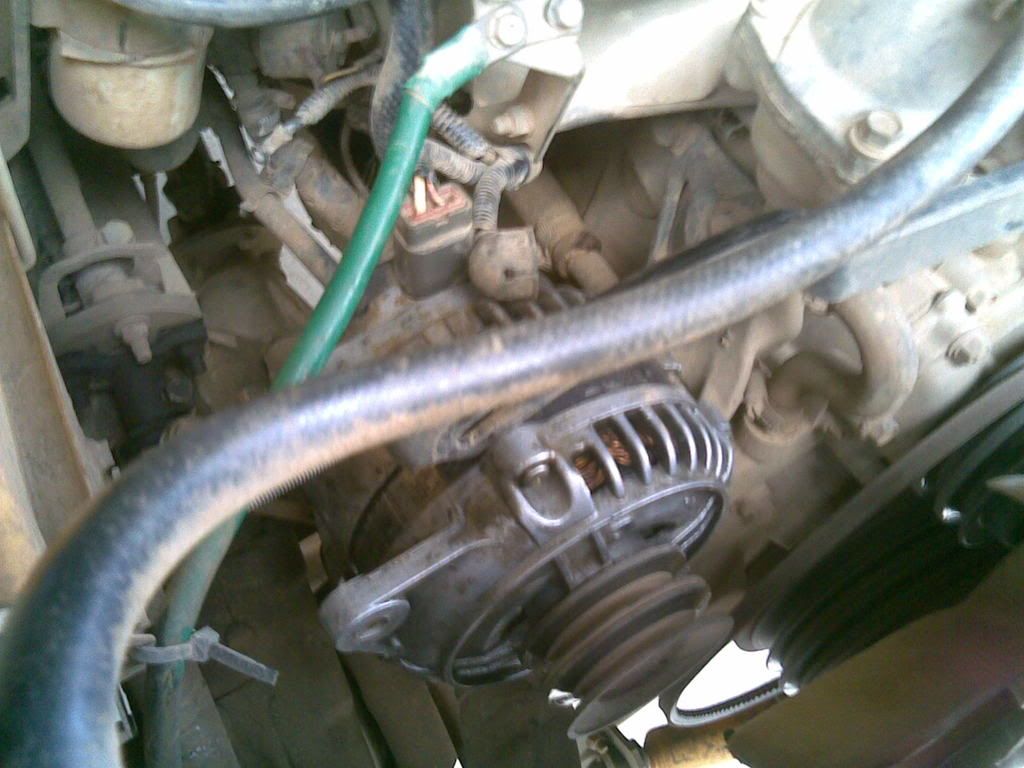

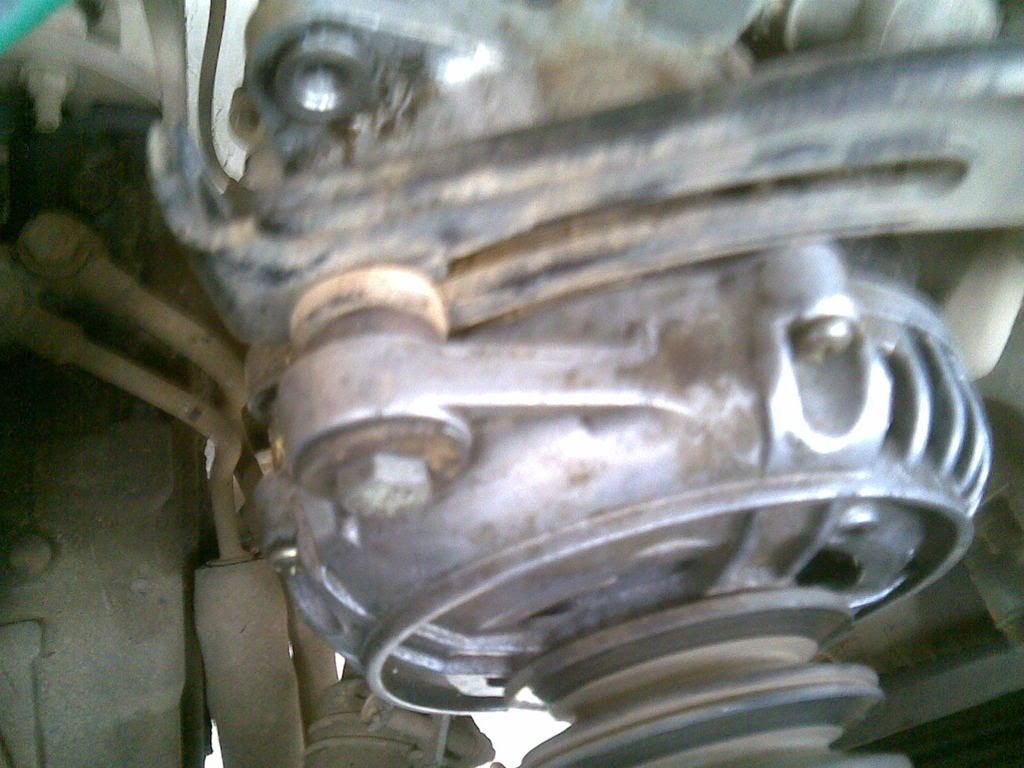

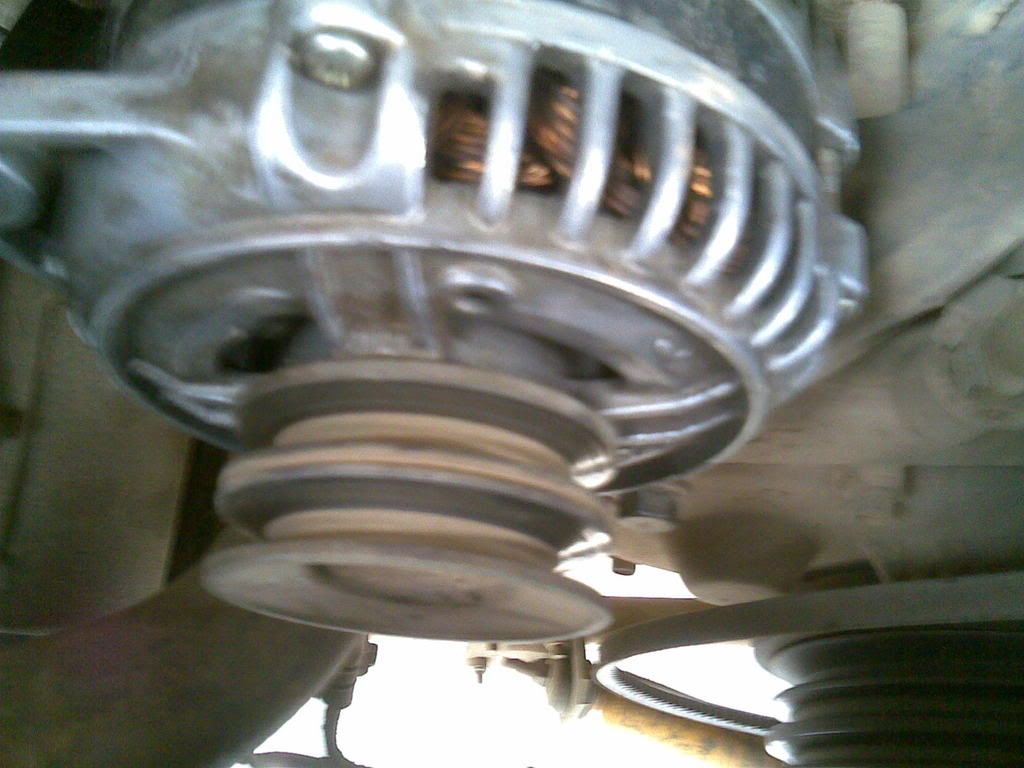

ok so here are the 3 photos of the alternator in my car, its flipped and waiting for its new bracket and some longer belts, but works like a charm...
