another pipe/tube bender Q

Post by **4sum4** » Sat Jul 15, 2006 6:32 pm

bottle jack with dawn die Vs speedworx!

does anyone no the radius differances between these two or the radius each one does?and what bender will do 48.3OD black pipe and 47.6OD x 3.2 CDW

Post by **beebee** » Sun Jul 16, 2006 10:58 am

32NB Dawn will do a tighter radius than the equivalent Speedworx die.

Post by **4sum4** » Mon Jul 17, 2006 8:29 pm

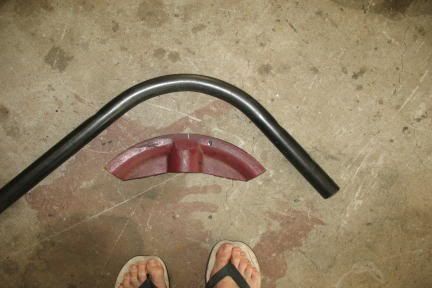

borrowed the 40NB dawn die from work and got a 270mm radius wich is big

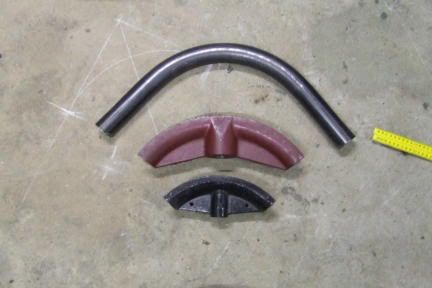

top is DAWN die and bottom is SPEEDWORX

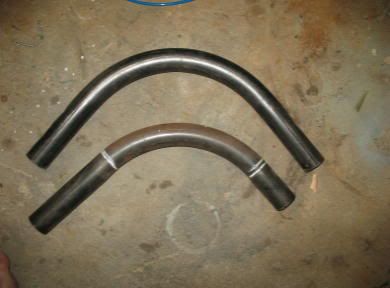

pic of 32nb out side radius is close to 8.25"

Post by **Webbie** » Tue Jul 18, 2006 12:01 am

how do you stop the 2 bend markx in the pipe ?????

Post by **Wendle** » Tue Jul 18, 2006 7:46 am

Webbie wrote:how do you stop the 2 bend markx in the pipe ?????

move the rollers out and clean all the soft powdercoating off them (back to bare steel) so they actually roll.

Post by **beebee** » Tue Jul 18, 2006 11:04 pm

beebee wrote:32NB Dawn will do a tighter radius than the equivalent Speedworx die.

Ummm...Change that!

25NB Dawn does about 160mm
25NB Speedworx does about 180mm

Don't have actual measurements for the 32NB but the Speedworx is slightly tighter than the Dawn. Only going by holding a sample up to some existing tubework on my buggy.

Regardless, I still say that a Dawn die will do better quality bend (less deformation) than the equivalent Speedworx. Unfortunately it's just slower and less user friendly.

Post by **4sum4** » Wed Jul 19, 2006 5:11 pm

I rang speedworx today and the centre Radius is 203.2mm compared to the dawn centre radius wich is approx 245mm

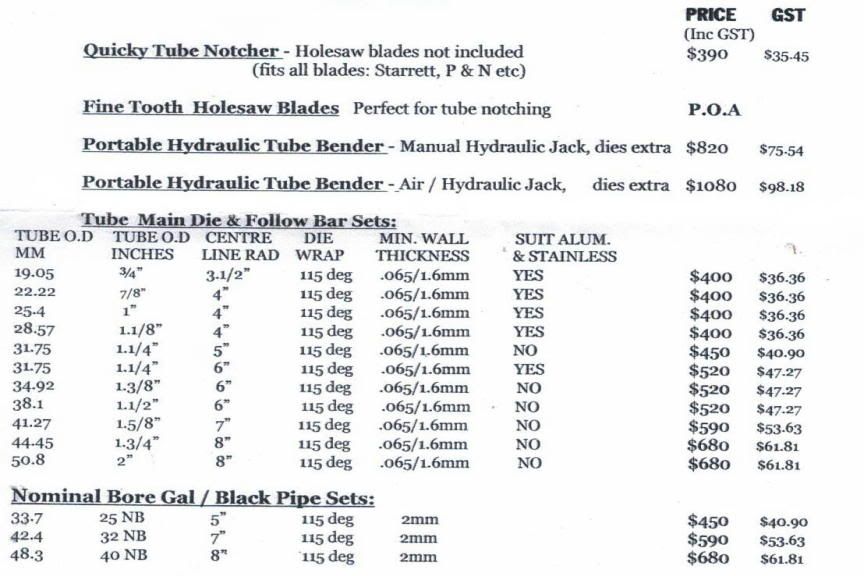

the price list and sizes
