Hi,
Has anyone dismantled an engel fridge before?
Just after advise on how and what to look out for when dismantling an engel fridge. I would like to dismantle and clean the condensor coils as mine has silver paint on it.
Notice: We request that you don't just set up a new account at this time if you are a previous user.
If you used to be one of our moderators, please feel free to reach out to Chris via the facebook Outerlimits4x4 group and he will get you set back up with access should he need you.
If you used to be one of our moderators, please feel free to reach out to Chris via the facebook Outerlimits4x4 group and he will get you set back up with access should he need you.
Recovery:If you cannot access your old email address and don't remember your password, please click here to log a change of email address so you can do a password reset.
Has anyone dismantled an engel --- now with pics ---
Moderators: toaddog, TWISTY, V8Patrol, Moderators
Has anyone dismantled an engel --- now with pics ---
Last edited by Seafarer on Sat May 05, 2007 7:37 pm, edited 1 time in total.
Cheers,
Mike
~1999 GU TD42T~
Mike
~1999 GU TD42T~
i have replied to your Q in this thread
http://carl.outerlimits4x4.com/viewtopic.php?t=107510
i have dismantled and repaired a couple of engels, but i dont be profess to be an expert on them. i repair household fridges for a living, that said all fridges work on the same principal, but controls differ a little bit.
http://carl.outerlimits4x4.com/viewtopic.php?t=107510
i have dismantled and repaired a couple of engels, but i dont be profess to be an expert on them. i repair household fridges for a living, that said all fridges work on the same principal, but controls differ a little bit.
--
Thanks to Madmac for the heads up on how to dismantle the fridge.
In answer to your questions from the other thread:
1) When the fridge dial is set at 5, it does cycles.
2) No idea how long it took to reach the -9.6 celsius reading when dial is set at 5.
3) The evaporator plate (the white ring plate surrounding the internals of the fridge compartment) does have frosting all the way around.
4) Ambient temp of the garage. I did not take note but will measure and feedback tomorrow.

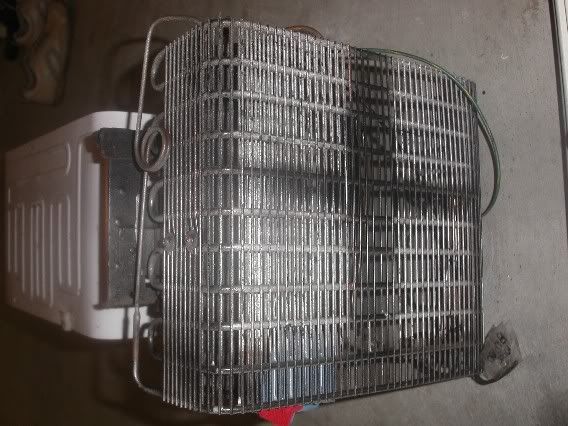

5) Yes, the condensor is clogged up with fluff and crap and has paint all over it (pic below). I believe if this can be cleaned up to its glorious black, I might be able to push the temp lower than -10 celsius I am currently getting from the unit.
Does anyone have a good suggestion how best to remove the paint on the coils? Been told not to use mineral turps or thinner... perhaps baby wipes (that would be a very looooooong day) , soft copper bristle brush??

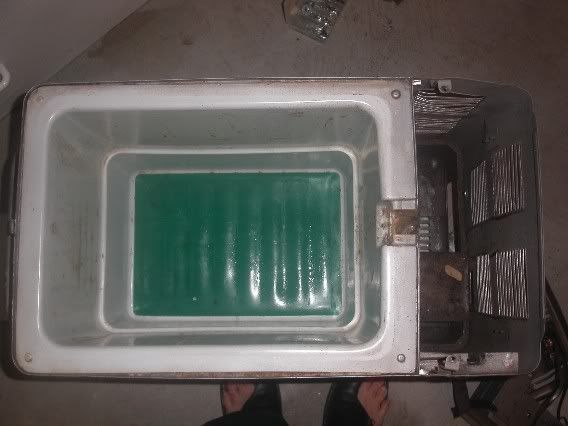

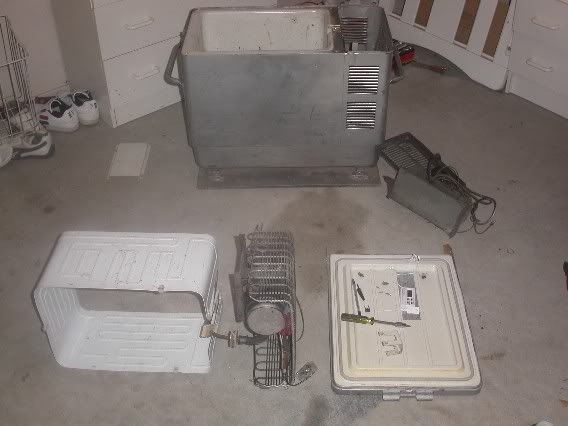

The following pics are from tonight's effort.
Is it alright for the unit to rest on its sides as per the pic?
This will get a good wash, panel beating and a few coats of paint.

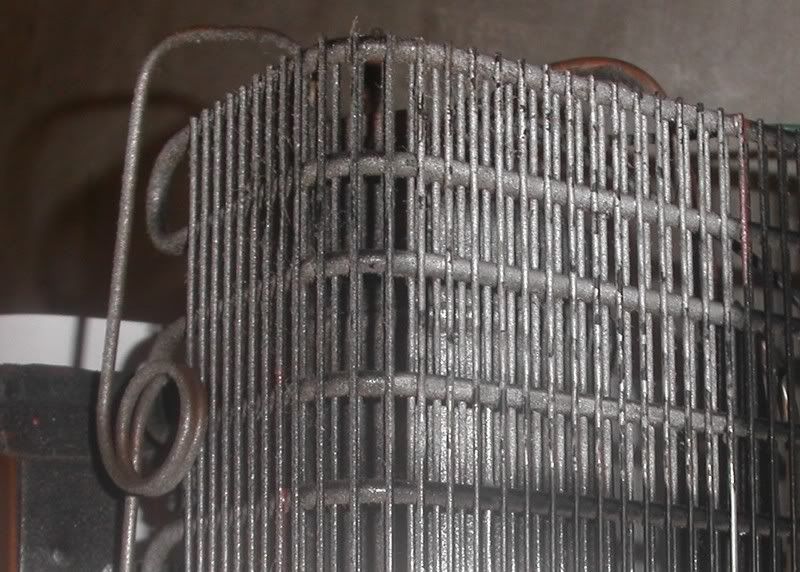

A close up pic of the paint damage!!!
Thanks to Madmac for the heads up on how to dismantle the fridge.
In answer to your questions from the other thread:
1) When the fridge dial is set at 5, it does cycles.
2) No idea how long it took to reach the -9.6 celsius reading when dial is set at 5.
3) The evaporator plate (the white ring plate surrounding the internals of the fridge compartment) does have frosting all the way around.
4) Ambient temp of the garage. I did not take note but will measure and feedback tomorrow.
5) Yes, the condensor is clogged up with fluff and crap and has paint all over it (pic below). I believe if this can be cleaned up to its glorious black, I might be able to push the temp lower than -10 celsius I am currently getting from the unit.
Does anyone have a good suggestion how best to remove the paint on the coils? Been told not to use mineral turps or thinner... perhaps baby wipes (that would be a very looooooong day) , soft copper bristle brush??
The following pics are from tonight's effort.
Is it alright for the unit to rest on its sides as per the pic?
This will get a good wash, panel beating and a few coats of paint.
A close up pic of the paint damage!!!
Cheers,
Mike
~1999 GU TD42T~
Mike
~1999 GU TD42T~
After a few days of hard work with a nylon brush the condensor coils have finally been cleaned and the fridge now clocks a minmum temp of 23.6 celsius on an ambient temp in the low to mid 20's.

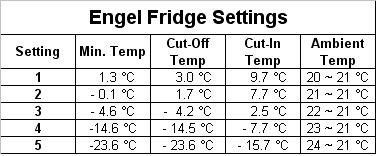

Engel Fridge Readings when empty.

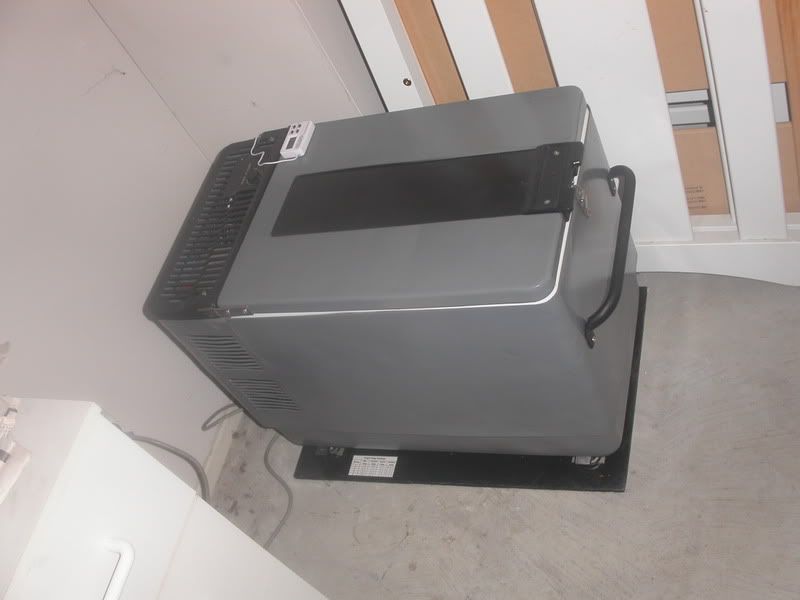

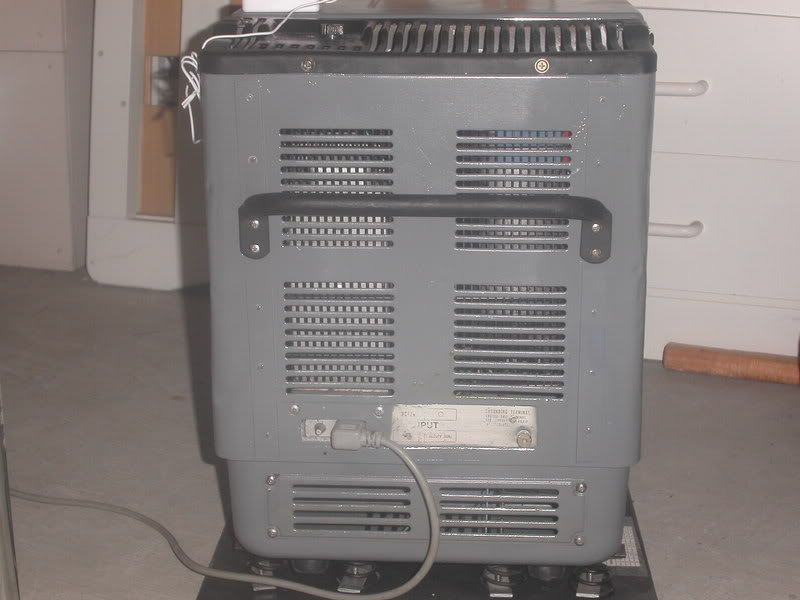

Panel beaten, coat of paint, and back panel re-inforced with 2 aluminium strips. I am happy now.
Engel Fridge Readings when empty.
Panel beaten, coat of paint, and back panel re-inforced with 2 aluminium strips. I am happy now.
Cheers,
Mike
~1999 GU TD42T~
Mike
~1999 GU TD42T~
