TD42 Oil Line Thread Size

Tech Talk for Nissan owners.

Moderators: toaddog, V8Patrol

Forum rules
Post Reply
Posts: 155
Joined: Mon Jun 27, 2005 3:06 pm
Location: Birdwood, Adelaide Hills

Contact:
Contact oondy

TD42 Oil Line Thread Size

Post by oondy »

Just about to fit up my turbo setup but need to get an oil line made up. Can anyone tell me what size the thread is into the block for the Oil Pressure Sender, or the oil feed for the Vacuum pump on the alternator.

I read somewhere it was M10x1.0 Tapered....is this correct?

cheers

OONDY
BIG O 4X4 - 4WD SUSPENSION AND ACCESSORIES.
PH: 0438 870 856 EMAIL: sales@bigo4x4.com.au WEB: www.bigo4x4.com.au
Internet Specials: 2" Kits from $690 Patrol 3-6" kits from $2000
Top
Posts: 146
Joined: Sun Jul 13, 2003 3:01 pm

Post by marko »

Both 1/8 BSPT. Not NPT
Top
Posts: 295
Joined: Sun Sep 24, 2006 5:34 pm

Post by azzad »

What did you end up doing for turbo and manifold?

Are you doing intercooler also?

Be keen to see it once ur done or give you hand if you want.
Top
Posts: 155
Joined: Mon Jun 27, 2005 3:06 pm
Location: Birdwood, Adelaide Hills

Contact:
Contact oondy

Post by oondy »

I went the DTs Manifold, made a T25 adapter to fit GT2860RS - without the adapter, besides the flanges being different, the compressor housing would have fouled on the manifold.

just sorting all the bits out so i can just fit it up in a weeks time or so.

cheers

OONDY
BIG O 4X4 - 4WD SUSPENSION AND ACCESSORIES.
PH: 0438 870 856 EMAIL: sales@bigo4x4.com.au WEB: www.bigo4x4.com.au
Internet Specials: 2" Kits from $690 Patrol 3-6" kits from $2000
Top
Posts: 368
Joined: Tue Jan 18, 2005 12:06 am
Location: scotland

Post by lexi »

give us installation pics ..........please :D

Alex
Top
Posts: 155
Joined: Mon Jun 27, 2005 3:06 pm
Location: Birdwood, Adelaide Hills

Contact:
Contact oondy

Post by oondy »

haven't got it in yet, just piecing it together before I go passed the point of no return.

does anyone know what thread the water jacket plug is at the rear of the block, under the exhaust manifold?

1/2BSPT or something I'm guessing?????

cheers

OONDY
BIG O 4X4 - 4WD SUSPENSION AND ACCESSORIES.
PH: 0438 870 856 EMAIL: sales@bigo4x4.com.au WEB: www.bigo4x4.com.au
Internet Specials: 2" Kits from $690 Patrol 3-6" kits from $2000
Top
Posts: 1857
Joined: Fri Feb 02, 2007 12:16 am
Location: ipswich

Post by nastytroll »

1/4 bspt for water at rear of LHS of block and returns into thermostat top cover I can email you pics if you want
Top
Posts: 295
Joined: Sun Sep 24, 2006 5:34 pm

Post by azzad »

pics would be great
Top
Posts: 1857
Joined: Fri Feb 02, 2007 12:16 am
Location: ipswich

Post by nastytroll »

i dont have a photobucket ac. so if anyone wants pics i can email
Top
Posts: 155
Joined: Mon Jun 27, 2005 3:06 pm
Location: Birdwood, Adelaide Hills

Contact:
Contact oondy

Post by oondy »

sales@bigo4x4.com.au

cheers

OONDY
BIG O 4X4 - 4WD SUSPENSION AND ACCESSORIES.
PH: 0438 870 856 EMAIL: sales@bigo4x4.com.au WEB: www.bigo4x4.com.au
Internet Specials: 2" Kits from $690 Patrol 3-6" kits from $2000
Top
Posts: 295
Joined: Sun Sep 24, 2006 5:34 pm

Post by azzad »

Can you post up or pass on pls OONDY
Top
Posts: 155
Joined: Mon Jun 27, 2005 3:06 pm
Location: Birdwood, Adelaide Hills

Contact:
Contact oondy

Post by oondy »

heres some that mickyd555 sent me.

he's got the DTS setup, same as mine will be but different turbos.

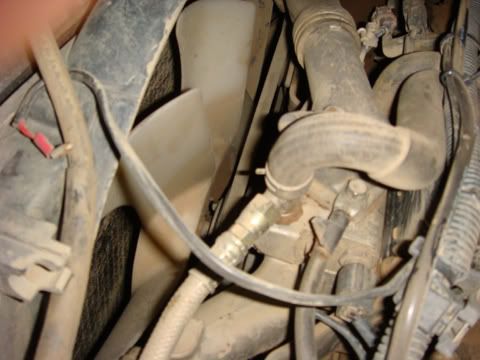

T into thermostat housing for water feed

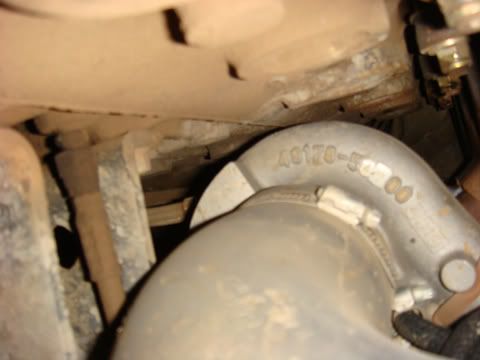

oil pick up from above passenger side engine mount bracket

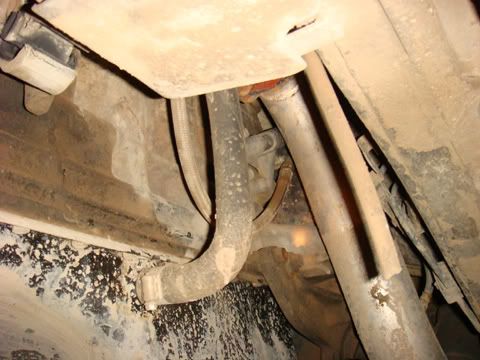

oil drain into sump and water return into drain in rear of block


cheers

OONDY
BIG O 4X4 - 4WD SUSPENSION AND ACCESSORIES.
PH: 0438 870 856 EMAIL: sales@bigo4x4.com.au WEB: www.bigo4x4.com.au
Internet Specials: 2" Kits from $690 Patrol 3-6" kits from $2000
