Ideas on home brew fridge slide

General Tech Talk

Moderators: toaddog, TWISTY, V8Patrol, Moderators

Post Reply
Posts: 1650
Joined: Wed Jun 06, 2007 10:12 pm
Location: ipswich

Ideas on home brew fridge slide

Post by sloshy »

Going to put an engel in the back of a gu wagon, just wondering what
people used for a fridge slide instead of buying one.
cheers Dan

Licenced Carpenter
I do everything, free quotes
Brisbane west/Ipswich/rural
PM me
Posts: 850
Joined: Tue Jun 28, 2005 1:44 pm
Location: Sydney Southern Suburbs

Post by Swerve »

I used slides from ebay like this one
http://cgi.ebay.com.au/Drawer-Runners-S ... dZViewItem

My drawer doesnt use runners just plastic strips underneath and wood inplace so it can't tilt or lift up. Stove is on a cheap set of drawer runners from mitre 10


2010 TB48 GU Patrol
1973 G60 MWB Soft Top Showcar
1972 G60 MWB Soft Top Project 4WD
1978 G60 Ute "HellPatrol"
www.oz4wdclassicparts.com.au
Posts: 14209
Joined: Sun Jan 11, 2004 11:36 am
Location: Adelaide

Post by -Scott- »

I used Hafele rails for my fridge slide too - not cheap!
User avatar
sw1
Posts: 297
Joined: Mon Mar 15, 2004 10:06 am
Location: around the place

Post by sw1 »

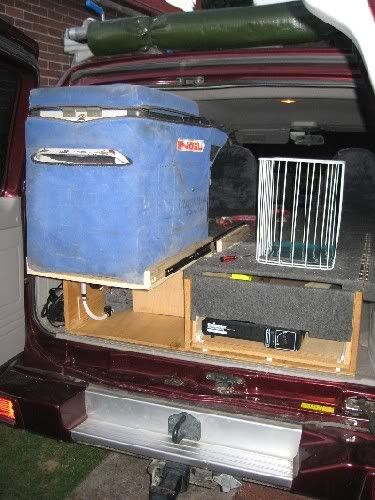

just done, not completely finished tho, a set of draws & fridge slide for the back of my gu. two draws side by side and fridge slide above, & completely independant of, the drivers side draw
fridge is a waeco 110

used accuride slides from concept latch in vic. very, very happy with the slides. they work a treat & they lock in & out. perfect fit between the back doors & a milford cargo barrier & slide length lets fridge comes out with ample space to open the fridge door

however going to make something so the lever on each slide can be pulled from one central point. two separate levers has proved to make it hard to operate sometimes.
2003 GU Patrol ST 4.2L Diesel Turbo Intercooled
1988 D21 Pathfinder 3.8L V6 & T700 - SOLD 11/12
Posts: 1245
Joined: Fri May 02, 2003 4:28 pm
Location: Kyrgyzstan

Post by me3@neuralfibre.com »

Don't buy the 4wd systems one, not real happy with it.

The Waeco one looked fine.

Paul
Lexus LX470 - hrrm Winter Tyres
Gone - Cruiser HZJ105 Turbo'd Locked & Lifted
Gone - 3L Surf
Posts: 377
Joined: Mon Mar 20, 2006 5:52 pm
Location: Geelong

Post by tj81 »

I have used old Computer Server Rack mount brackets that have been taken out of systems we have pulled out !! Theyre rated to carry some pretty heavy server equiptment so for nothing i thought they do the job rather well !!
92 LWB Ford Maverick 4.2, Dual Fuel.

99 GU ST 4.2 Turbo Diesel, Non Intercooled, Tigerz11 w/synthetic, 35"' Bighorns, ARB Compressor, Snorkel.
