looking for pics of coiles hiluxs

[Nat84]

just need seem pics of coiles in hiluxs to see how people have done there hats and links on the back

would mainly like pics of hats on the chassis

nat

[A1]

Search for -Richo- on the board or PM him he may help ya with some pics or they will be in his build up thread ...he done a very job of his


Dan

[batcho101]

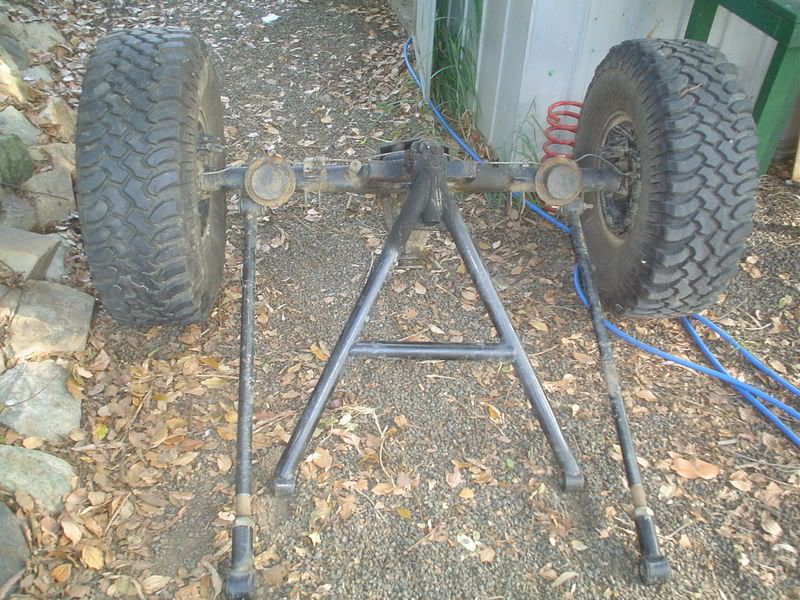

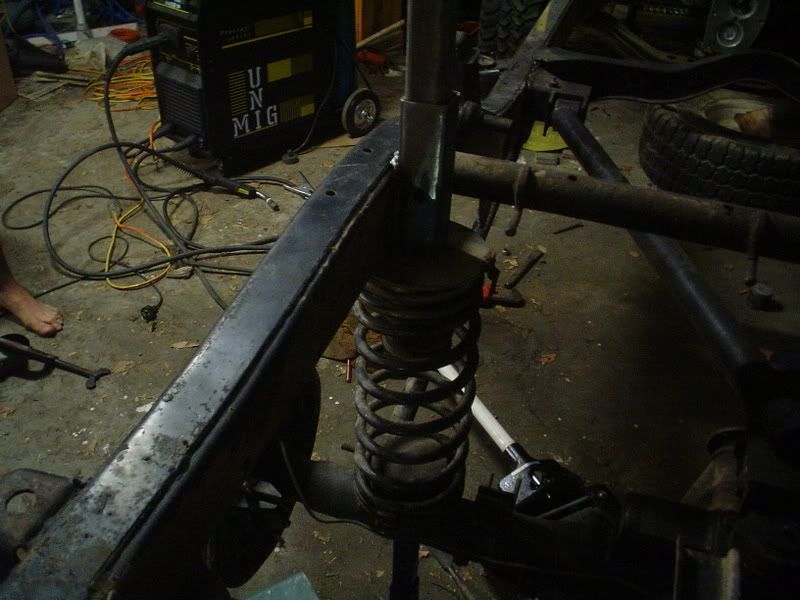

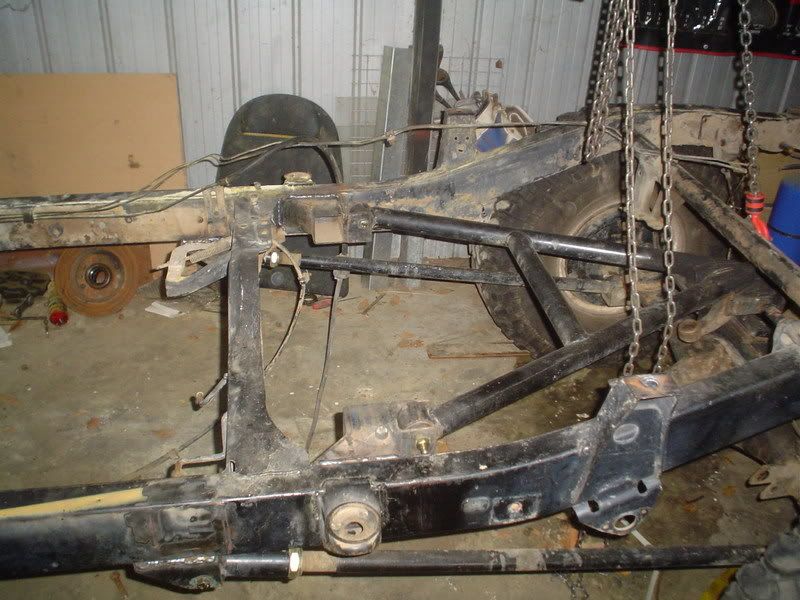

heres some pics of mine the coil hats slide in the box section welded on the inside of the chasis rails lower links are in line with the bottom of the chasis rails and the top is an a-frame

[lukes4x4]

LUKEYS 4X4 CUSTOMS BUILD COIL KITS FOR HILUX`S ESPECIALLY. REAR CONSISTS OF A- FRAME DESIGN. WE ALSO SUPPLY PARTS IF YOUR A DO IT YOURSELF PERSON. CALL LUKE ON 0409 991742. CAN SEND EMAIL OF INTEREST TO lukes4x4@optusnet.com.au AND CAN SEND YOU PICS ON TRUCKS ALREADY BUILT.

[ssfabricator]

would you be able to get your vehicle insured and registered after doin this mod

[Grublux]

I have my lux insured and registered with an A frame rear and 5 link front running 80 series diffs front and rear. As long as it's engineered I don't see a problem with rego. Just make sure it is all done properly.

[Shadow]

heres some pics of mine the coil hats slide in the box section welded on the inside of the chasis rails lower links are in line with the bottom of the chasis rails and the top is an a-frame

Thats a great solution to the spring falling out problem people have when they get to much flex. was this your own idea or something you reproduced?

[beebee]

Coil hat/sliders are not in anyway desirable except for the ramp.

I think you'll find that Bacho's sliders are bolted but adjustable to give different ride heights. I first saw this idea on the old Haultech lockless buggy years ago.

The easiest way to capture the coil spring is simply some flatbar with a few bolts sandwiching the last coil wrap. Others weld on some bent tabs but they sometimes bend back and release the spring when you least expect it. Or you could always just cable tie them
