Can anyone supply me with the hole centres and diameters and the required dimensions for the slot in a bullbar for a hawse fairlead.

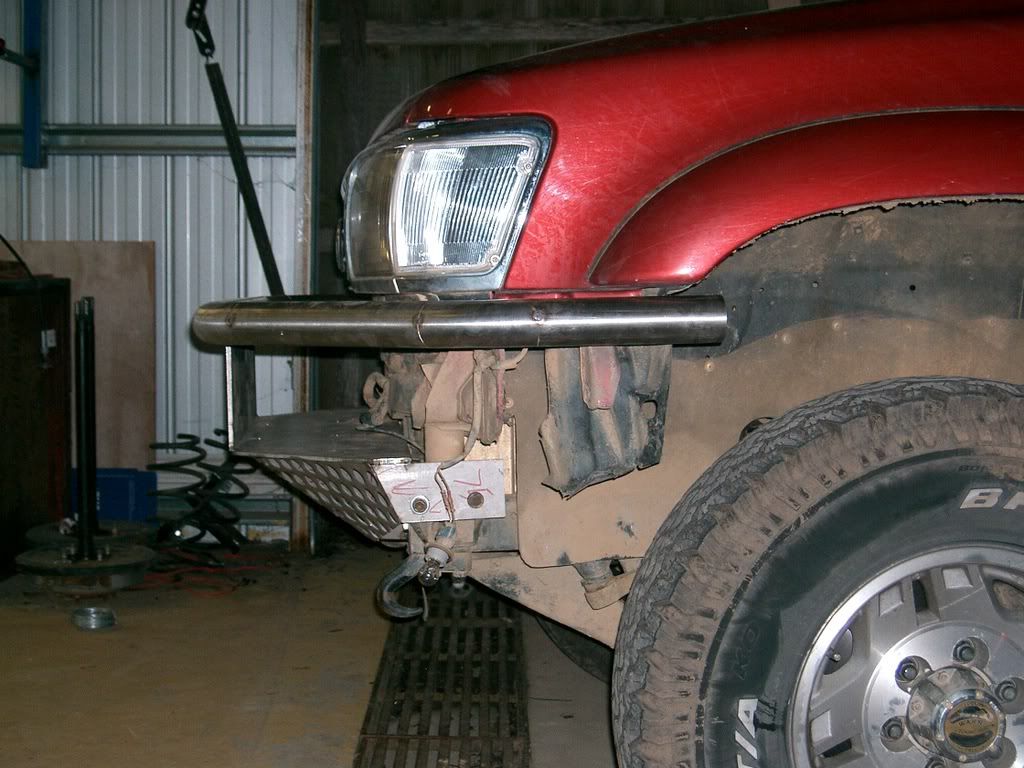

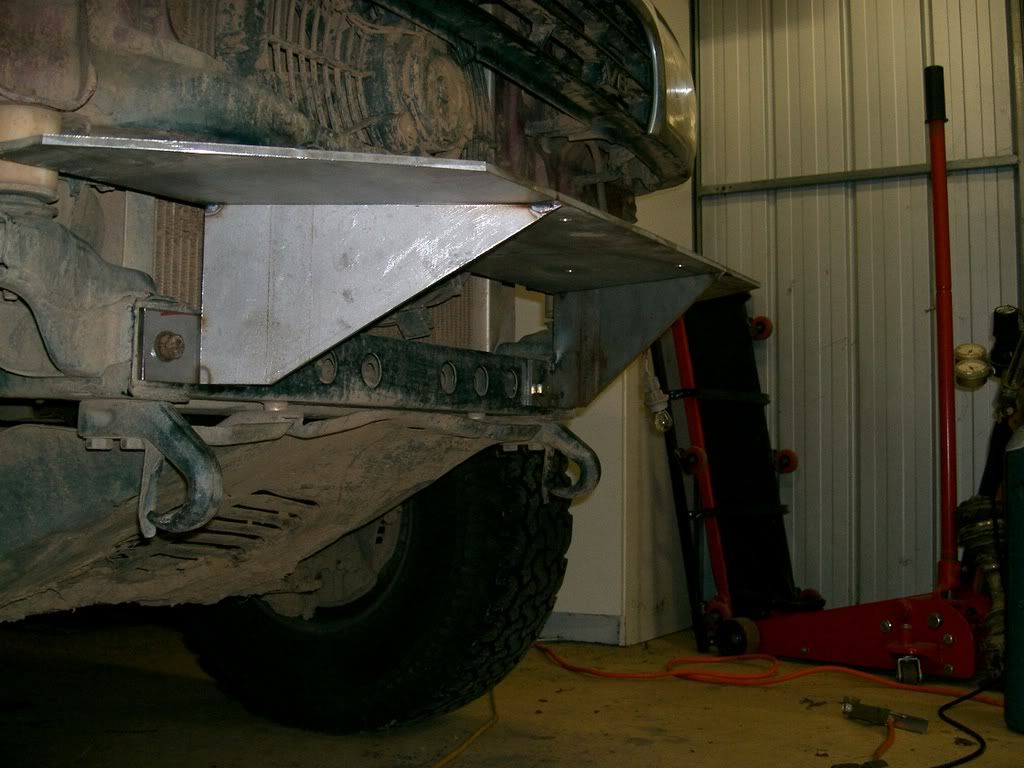

I missed the shops tonight and my weekend project is being held up until I get one or get the dimensions.
thanks.
Notice: We request that you don't just set up a new account at this time if you are a previous user.
If you used to be one of our moderators, please feel free to reach out to Chris via the facebook Outerlimits4x4 group and he will get you set back up with access should he need you.
If you used to be one of our moderators, please feel free to reach out to Chris via the facebook Outerlimits4x4 group and he will get you set back up with access should he need you.
Recovery:If you cannot access your old email address and don't remember your password, please click here to log a change of email address so you can do a password reset.
hawse fairlead dimensions
Moderators: toaddog, TWISTY, V8Patrol, Moderators
Try thi , might help , Cheers Paul.
Dimesions for a hause fairlead?
--------------------------------------------------------------------------------
cbkearney08-06-2005, 05:12 PM
I was wondering if anyone had the dimensions for a hause fairlead. I am looking for the opening dimensions in particular, but if you have the outside dimensions too that would be great.
--------------------------------------------------------------------------------
DRM08-06-2005, 06:35 PM
You looking to make your own? I believe it's a 10" bolt pattern, and the rest is really not too particular, as long as you make it big enough to keep the rope off the winch mounting plate.
--------------------------------------------------------------------------------
orangefj4508-06-2005, 11:33 PM
You looking to make your own? I believe it's a 10" bolt pattern, and the rest is really not too particular, as long as you make it big enough to keep the rope off the winch mounting plate.
of course assuming that you're talking about a hawse fairlead?! :rolleyes: drm is right on the money as usual.
--------------------------------------------------------------------------------
cbkearney08-07-2005, 09:34 AM
I am talking about a hawse. Is that how you spell it. No wonder I did not have much luck searching.
I am making a rear bumper with a winch mounted about 5.5" behind the leading edge of the bumper. I don't have a hause fairlead handy and I am trying to figure out how big the hole in the winch mounting plate should be.
As an aside, I was thinking about taking some small DOM tubing and welding it around the edge of the opening to make sure that there are not any rough edges to snag the rope. What do you think? Good idea or overkill?
--------------------------------------------------------------------------------
Sean08-07-2005, 03:05 PM
My hawse fairlead (off a Ramsey REP 8000) is 11.5" long by 3" tall at it's tallest point.
The opening is 8.5" long by 1" wide. It's around 3/4" thick. Bolt pattern is 10" with 3/8" holes.
HTH,
Sean
--------------------------------------------------------------------------------
Sean08-07-2005, 03:38 PM
Oh, and the hole in the winch mounting plate is 1 1/4" tall by 9.25" long (if that helps).
Sean
--------------------------------------------------------------------------------
oddcarma08-07-2005, 03:44 PM
As an aside, I was thinking about taking some small DOM tubing and welding it around the edge of the opening to make sure that there are not any rough edges to snag the rope. What do you think? Good idea or overkill?
This idea works well. I've done this on a few bumpers. Just make sure you blend in and smooth out the area that will make contact.
--------------------------------------------------------------------------------
chopfab08-07-2005, 07:57 PM
The hole in the hawse fairlead should be the width of your winch drum.
--------------------------------------------------------------------------------
cbkearney08-07-2005, 08:11 PM
Thanks for the info Sean and Chopfab and confirmation that my idea is not complete shiat Oddcarma.
Has any one seen or built a bumper that has the hawse fairlead recessed into the bumper?
Since this is a rear bumper I am slightly concerend about slamming it down on rocks and possibly hanging up on it or more likely ripping it right off the bumper when coming down off obstacles.
Also, if the mounting point for the fairlead is not vertical but on a slant, do you think the vertical dimensions the hawse should be larger since the tipping it at an angle reduces the opening (like when you move off center on goal in hockey it becomes a harder shot even though the size of the net never changes)? If that makes sense, or again am I thinking about this too much?
--------------------------------------------------------------------------------
MC08-07-2005, 08:18 PM
3 to 3.5 inches tall with a 7.25 wide opening a .750 (at least) wide slot and at least 1/2 of material from throug hole to end of lead. Smooth radius on front and back are required for a long rope life.
--------------------------------------------------------------------------------
vBulletin® v3.7.1, Copyright ©2000-2008, Jelsoft Enterprises Ltd.
Dimesions for a hause fairlead?
--------------------------------------------------------------------------------
cbkearney08-06-2005, 05:12 PM
I was wondering if anyone had the dimensions for a hause fairlead. I am looking for the opening dimensions in particular, but if you have the outside dimensions too that would be great.
--------------------------------------------------------------------------------
DRM08-06-2005, 06:35 PM
You looking to make your own? I believe it's a 10" bolt pattern, and the rest is really not too particular, as long as you make it big enough to keep the rope off the winch mounting plate.
--------------------------------------------------------------------------------
orangefj4508-06-2005, 11:33 PM
You looking to make your own? I believe it's a 10" bolt pattern, and the rest is really not too particular, as long as you make it big enough to keep the rope off the winch mounting plate.
of course assuming that you're talking about a hawse fairlead?! :rolleyes: drm is right on the money as usual.
--------------------------------------------------------------------------------
cbkearney08-07-2005, 09:34 AM
I am talking about a hawse. Is that how you spell it. No wonder I did not have much luck searching.
I am making a rear bumper with a winch mounted about 5.5" behind the leading edge of the bumper. I don't have a hause fairlead handy and I am trying to figure out how big the hole in the winch mounting plate should be.
As an aside, I was thinking about taking some small DOM tubing and welding it around the edge of the opening to make sure that there are not any rough edges to snag the rope. What do you think? Good idea or overkill?
--------------------------------------------------------------------------------
Sean08-07-2005, 03:05 PM
My hawse fairlead (off a Ramsey REP 8000) is 11.5" long by 3" tall at it's tallest point.
The opening is 8.5" long by 1" wide. It's around 3/4" thick. Bolt pattern is 10" with 3/8" holes.
HTH,
Sean
--------------------------------------------------------------------------------
Sean08-07-2005, 03:38 PM
Oh, and the hole in the winch mounting plate is 1 1/4" tall by 9.25" long (if that helps).
Sean
--------------------------------------------------------------------------------
oddcarma08-07-2005, 03:44 PM
As an aside, I was thinking about taking some small DOM tubing and welding it around the edge of the opening to make sure that there are not any rough edges to snag the rope. What do you think? Good idea or overkill?
This idea works well. I've done this on a few bumpers. Just make sure you blend in and smooth out the area that will make contact.
--------------------------------------------------------------------------------
chopfab08-07-2005, 07:57 PM
The hole in the hawse fairlead should be the width of your winch drum.
--------------------------------------------------------------------------------
cbkearney08-07-2005, 08:11 PM
Thanks for the info Sean and Chopfab and confirmation that my idea is not complete shiat Oddcarma.
Has any one seen or built a bumper that has the hawse fairlead recessed into the bumper?
Since this is a rear bumper I am slightly concerend about slamming it down on rocks and possibly hanging up on it or more likely ripping it right off the bumper when coming down off obstacles.
Also, if the mounting point for the fairlead is not vertical but on a slant, do you think the vertical dimensions the hawse should be larger since the tipping it at an angle reduces the opening (like when you move off center on goal in hockey it becomes a harder shot even though the size of the net never changes)? If that makes sense, or again am I thinking about this too much?
--------------------------------------------------------------------------------
MC08-07-2005, 08:18 PM
3 to 3.5 inches tall with a 7.25 wide opening a .750 (at least) wide slot and at least 1/2 of material from throug hole to end of lead. Smooth radius on front and back are required for a long rope life.
--------------------------------------------------------------------------------
vBulletin® v3.7.1, Copyright ©2000-2008, Jelsoft Enterprises Ltd.
BLOWNZUK 1.3 efi,sc14 supercharger,hilux diffs,detroit lockers,stage 4 rockhopper,6 point cage,35 muddies.
HAWSE FAIRLEAD FOR ROPE
HAWSE FAIRLEAD FOR ROPE
TOTAL LENGTH 295MM
TOTAL WIDTH 68MM
LENGTH OF OPENING FOR ROPE TO PASS THRU 185MM
WIDTH OIF OPENING FOR ROPE TO PASS THRU 23MM
THICKNESS 20MM
TOTAL LENGTH 295MM
TOTAL WIDTH 68MM
LENGTH OF OPENING FOR ROPE TO PASS THRU 185MM
WIDTH OIF OPENING FOR ROPE TO PASS THRU 23MM
THICKNESS 20MM
