SPRING UNDER OR ON TOP

Tech talk for GMH/Isuzu and Great Wall owners

Moderator: Moderators

Post Reply
Posts: 2
Joined: Tue Jul 19, 2005 11:22 pm

SPRING UNDER OR ON TOP

Post by big-bair »

:lol: HI
I HAVE A 94 RODEO WITH LEAF SPRING UNDER THE REAR DIFF CAN IT BE CHANGED TO LEAF SPRING ON TOP OF THE DIFF WITH NO PROBLEMS.
Posts: 104
Joined: Wed Jun 15, 2005 2:07 pm
Location: Ipswich QLD

spring over

Post by Guzzi »

BB,
YES you can but................
You dont tell us which state your in, so the story with leagalities varies, some will just say NO.
Swapping the springs to the top is not a huge job, it may require relocating some brackets and a bit of welding, but thats the easy bit.
The other problem is once you do a spring over axle, and the bum of your ute is now up in the air, its nearly impossible to raise the front high enough to match without dropping the front diff, cranking torsion bars, cutting bump stops,flipping and spaceing ball joints etc (after which your CV joints life expectency is quite short.)
Or go to the effort of doing a solid axle swap on the front.
Short answer , NO not without difficulty.
Reliability lies in the state of your wallet.........
Enjoy your family,friends and kids,remember no one gets out alive.
Posts: 117
Joined: Fri Dec 17, 2004 9:28 am
Location: Chile

Post by dani4JB1T »

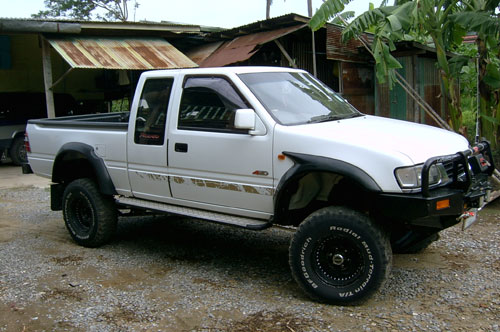

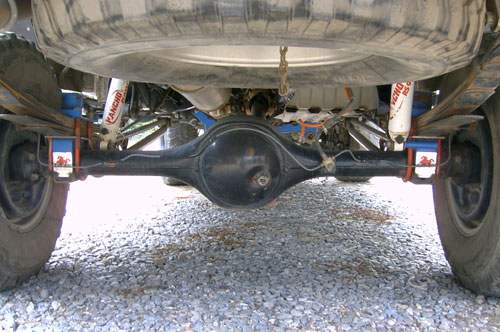

this is from a first gen troopie, same axle for rodeo.

`93 TFS55 4JB1T teralowed
Posts: 104
Joined: Wed Jun 15, 2005 2:07 pm
Location: Ipswich QLD

Post by Guzzi »

dani4JB1T,

Any idea what this bloke did to the front end of this vechicle?
Any side on photos?
Reliability lies in the state of your wallet.........
Enjoy your family,friends and kids,remember no one gets out alive.
Posts: 117
Joined: Fri Dec 17, 2004 9:28 am
Location: Chile

Post by dani4JB1T »

yep Guzzi...

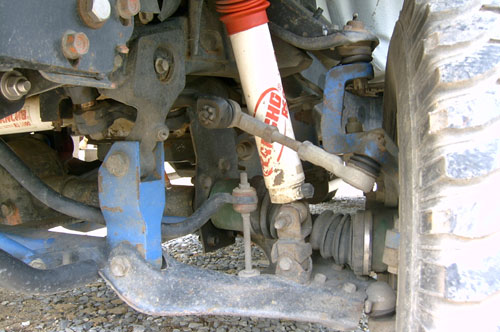

the guy just cranked up the t-bar and fitted a body lift....



but he never get it at same level
`93 TFS55 4JB1T teralowed
Posts: 117
Joined: Fri Dec 17, 2004 9:28 am
Location: Chile

Post by dani4JB1T »

another way to do is something like this:


cheers
`93 TFS55 4JB1T teralowed
Posts: 76
Joined: Fri Apr 02, 2004 5:11 pm
Location: Lenah Valley, TAS

Post by Timbo(Rodeo) »

Wow, that is a nice bit of kit. Any idea who makes that? Local distributor in australia??

That would almost allow 35's I reckon? Maybe 34"?
Posts: 346
Joined: Sun Jun 22, 2003 6:23 pm
Location: Brisbane

Post by Yarno »

It's made by Sun
http://www.4x4.in.th/mr/
Go hard or go home!!!
MU build here
Posts: 76
Joined: Fri Apr 02, 2004 5:11 pm
Location: Lenah Valley, TAS

Post by Timbo(Rodeo) »

Ahh, yes I have seen those pics before. They look a little different from that kit, however it is probably their latest version of it or something.

Anyone ever heard of someone in AUS importing these?

If no one has, I be guessing because it isn't ADR compliant?

Last year I had a local 4WD centre ask Superlift if they were making something, and supposedly at the time it was in the R&D phase, I haven't checked up lately to see if they have completed it yet.
Posts: 76
Joined: Fri Apr 02, 2004 5:11 pm
Location: Lenah Valley, TAS

Post by Timbo(Rodeo) »

Actually.. Looking again, and looking at the logo on the pics above, it looks like it is the Unicon brand, as seen in these ones for a Ford.

http://www.4x4.in.th/mr/page/01248.html
Posts: 346
Joined: Sun Jun 22, 2003 6:23 pm
Location: Brisbane

Post by Yarno »

Yeah it might be, at least it's the right colour
Go hard or go home!!!
MU build here
Posts: 1578
Joined: Wed Aug 31, 2005 12:27 am
Location: In The Good Country

Post by sudso »

nice front flares :lol:
Bordertrek 4X4 & Fabrication
0400 250 734 Bordertown SA
I love terra firma-the less firma the more terra
