caster for trail only rig

Post by 4sum4 »

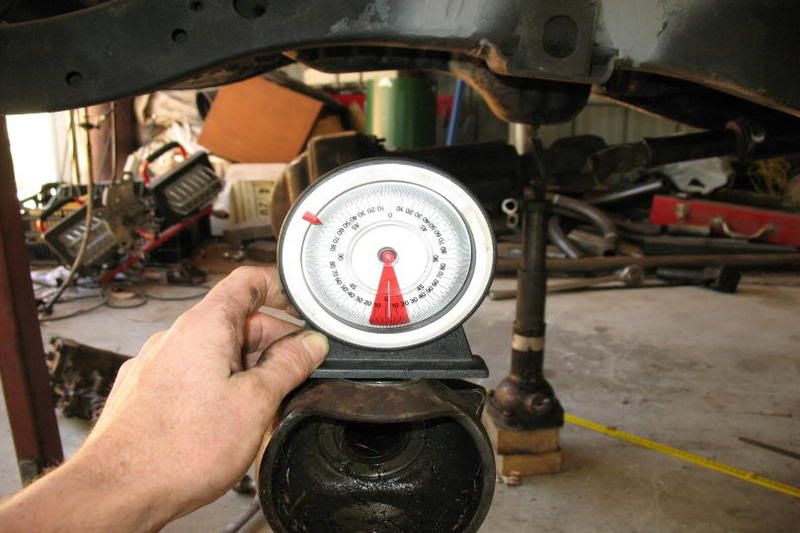

what caster would be best for a trail only rig,I got to rotate the nuckles and this is were there at now
[url=http://downunder4x4.net/forum/showthread.php?t=1650]86 Hilux[/url]
and a 84 extra cab



If Rocks Had P^ssies Our Lives Would Be Perfect :D...
Top
Posts: 1562
Joined: Sun Nov 21, 2004 7:26 pm
Location: Blue Mountains

Post by -Richo- »

is that positive 3 or 4 degrees? that should be ok for offroad and onroad, i think cruiser and lux castor from the factory is positive 3. Are you linking the front or sticking with leaves? if linking make the upper/s adjustable.
Yurich Design Services
www.yds.net.au
Top
Posts: 2136
Joined: Mon Dec 01, 2003 6:36 pm
Location: Lake Macquarie

Post by 4sum4 »

Yeah linking the front now,the reason is for pinion clearance to bell housing(rolled the diff down),I want to stick with a high pinion
I`m not quite sure on pos and neg with caster but I`m sure thats neg,I`m sure it`s 2-5 pos is good for onroad
[url=http://downunder4x4.net/forum/showthread.php?t=1650]86 Hilux[/url]
and a 84 extra cab



If Rocks Had P^ssies Our Lives Would Be Perfect :D...
Top
Posts: 1562
Joined: Sun Nov 21, 2004 7:26 pm
Location: Blue Mountains

Post by -Richo- »

if you draw an imaginary line through the centre point of both swivel bearings this is the castor angle... if its pointing towards the front from zero its positive, back is negative, from the looks of your pic its positive 3-4 degrees.
Yurich Design Services
www.yds.net.au
Top
Posts: 2296
Joined: Thu Oct 24, 2002 4:30 pm
Contact:
Contact OVERKILL ENG

Post by OVERKILL ENG »

We run the buggies @9 degrees
SAM
OVERKILL ENGINEERING
www.overkill4x4.com
Top
Posts: 11892
Joined: Tue Oct 22, 2002 9:53 am
Location: Melbourne

Contact:
Contact N*A*M

Post by N*A*M »

did you eye ball your castor angles sam? because they're not 9* and they're not the same either. :lol:
