temp probe location?

Tech Talk for Nissan owners.

Moderators: toaddog, V8Patrol

Forum rules
Post Reply
Posts: 93
Joined: Fri Jul 28, 2006 11:17 pm
Location: melbourne

temp probe location?

Post by full-boost »

Im looking at putting an aftermarket temp gauge on my 89 GQ 4.2 turbo diesel, as i dont think the factory one is accurate. can anyone recomend the best place to put the temp probe? top of radiator? radiator hose? etc...

also can anyone reccomend somewhere to have it fitted in the east of melbourne? im in the ringwood area!

thanks guys!
Top
Posts: 2347
Joined: Sat Jan 27, 2007 12:56 pm
Location: Perth

Post by Z()LTAN »

we got a steel pipe, drilled tapped and put sender in it, then cut top radiator hose and clamped it in there, between the hoses, worked fine, used 515 locktite and a copper waster to ensure it wont leak, you will have to run an earth to it though. Thats easy
Top
Posts: 93
Joined: Fri Jul 28, 2006 11:17 pm
Location: melbourne

Post by full-boost »

thanks mate!
Top
Posts: 287
Joined: Sun May 01, 2005 2:33 pm
Location: Sydney

Post by michael a »

I pulled out heater hose fitting from block and used a 3 way t piece it is best way to do it as the closer to the head the better. top hose will not give you accurate reading as it is on wronging side of thermostat
get under it
Top
Posts: 1109
Joined: Sat Feb 26, 2005 8:46 am
Location: Geraldton West Oz

Post by Hoppy11 »

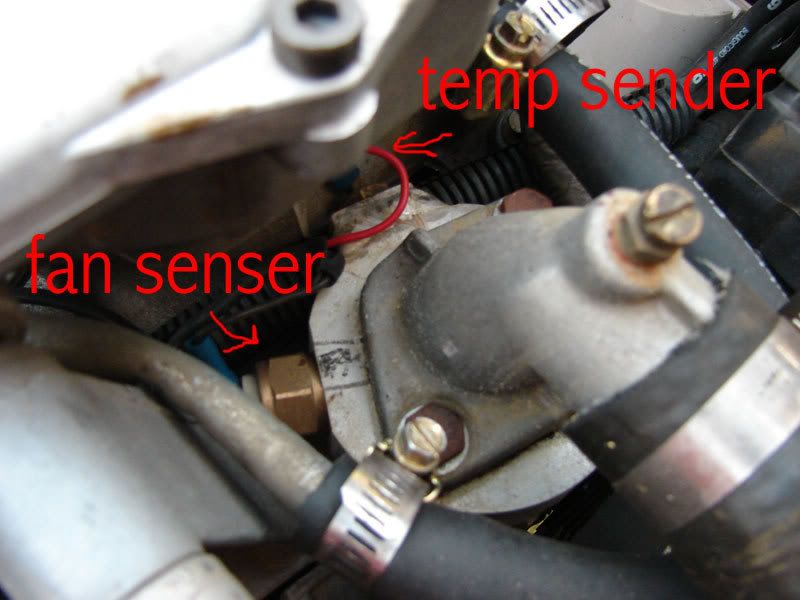

Can you put it where the original one was, if not, As close to the original sender would be good. I had an alloy spacer made to house the thermostat. and tapped threads for the new temp sender and new thermo fam sensors.
Hoppy
Top
