Pipe bender plans

Post by AFeral »

Found these pipe bender plans on ebay.

http://cgi.ebay.com.au/Rorty-No-3-Tube- ... dZViewItem

Anybody made one ?
Think I might give it a go.
Anything is possible, it just comes down to time and money.
Ferals build www.outerlimits4x4.com/ftopic164570.php
Top
Posts: 870
Joined: Sat Jun 03, 2006 5:32 pm
Location: sydney

Post by MART »

Unless your a toolmaker and have cnc access don't waste your time , buy one from Peter antunac at performance warehouse , you don't want that thing snapping in your face , Cheers Paul.
BLOWNZUK 1.3 efi,sc14 supercharger,hilux diffs,detroit lockers,stage 4 rockhopper,6 point cage,35 muddies.
Top
Posts: 721
Joined: Sun Apr 24, 2005 3:01 pm
Location: on top of a large pile of rocks

Post by AFeral »

I'm a first class boilermaker.
Will probaly buy the dies and make the rest.
Anything is possible, it just comes down to time and money.
Ferals build www.outerlimits4x4.com/ftopic164570.php
Top
Posts: 297
Joined: Wed Jul 12, 2006 6:32 pm
Location: cranbourne, vic

Post by g60boy »

im not sure if i have posted these befor, but these are all i have.

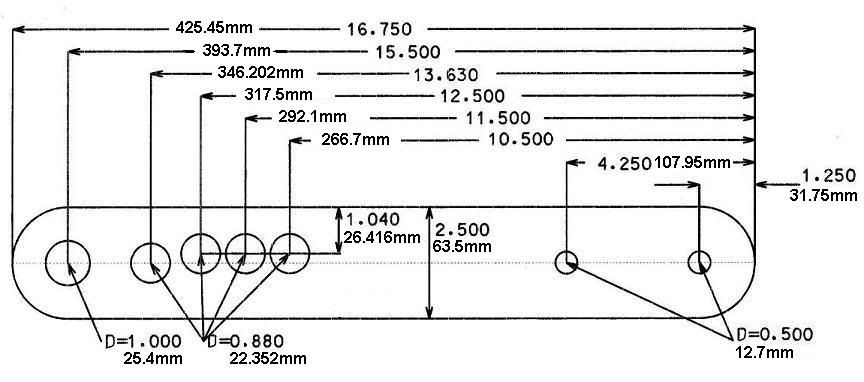

jd2, in metric and us imperial: (i converted to metric)

jd2 bender ratchet handle can be found http://64.172.168.34/neatstuff/tb2-1.pdf if the link doesnt work i may have the pic some where, its just to big to post up here!!! if i find it i could email it or something..

-----------------------------------------------------------------------------------

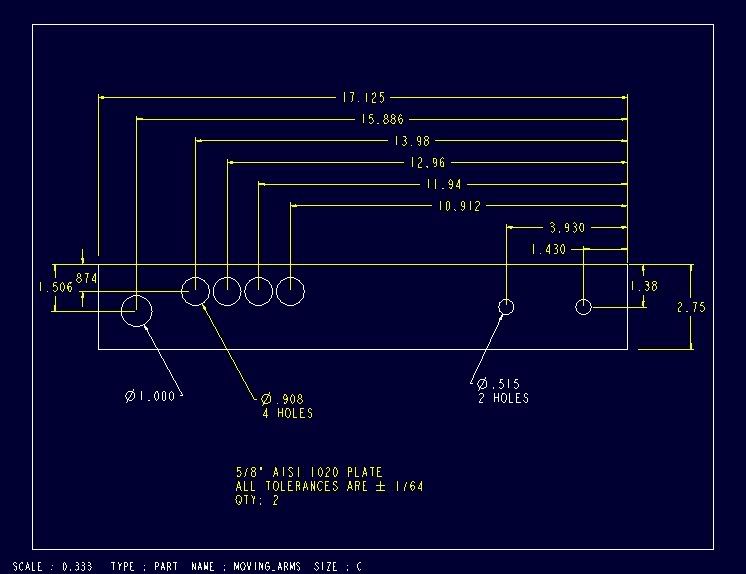

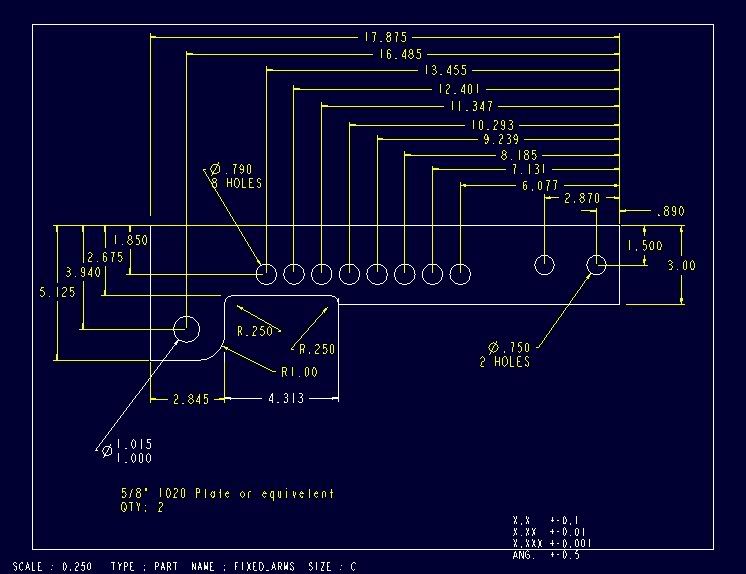

pro tools, in us imperial
mq shorty, black, rust free!!, quarter chop, F&R tube bars and sliders, q78's or 33'' stt's, 4.88's with lsd waiting to be thrown in.. :D http://www.patrol4x4.com/forum/showthread.php?t=9540
