Widening a low mount winch

Post by **sloshy** » Sun Jan 18, 2009 8:15 pm

Anyone done it?
I want to do it to a 10 000 t-max.

Post by **85lux** » Mon Jan 19, 2009 3:54 pm

i looked at it a while ago.
use seamless 4130 tube (available from performance metals). Use 4140 hex as drive shaft, piss off the cast bush support plates and machine up some custom ones from 25mm ally plate to accomodate proper bearings and oil seals. then your gearbox/freespool would run in oil and be more efficient and freespool lots easier. did you know that aproximately 40% of the torque the gearbox puts out is used to overcome the friction in the plastic bushes....

you will need a machine shop to do this though(or at least have a lathe), it's not a backyard job.

Post by **sloshy** » Mon Jan 19, 2009 4:41 pm

85lux wrote: you will need a machine shop to do this though(or at least have a lathe), it's not a backyard job.

Thats not a problem, I made a rear driveshaft disconnect from scratch in the backyard

Thanks for the info.

Post by **craz3d** » Tue Jan 20, 2009 11:30 am

sloshy wrote: Thats not a problem, I made a rear driveshaft disconnect from scratch in the backyard
Thanks for the info.

can you pm me/post pics of this here if you have any? interested to see how you did it.

Post by **85lux** » Tue Jan 20, 2009 2:40 pm

if you do end up making new bearing plates, make them to suit oversize flanges on the drum(ie 180 or 200mm diameter flanges). this will reduce the tentency of the rope to bind on the tie bars when pulling to one side.
keep in mind that if you do choose to run more layers(as opposed to more wraps per layer like a wider drum) of rope on your now larger flanged drum, you will increase line speed and decrease stall tension linearly with the radius at which the rope leaves the drum.

Post by **sloshy** » Tue Jan 20, 2009 4:42 pm

I want to widen it, not increase the flange diameter.

Post by **sloshy** » Tue Jan 20, 2009 4:43 pm

craz3d wrote: can you pm me/post pics of this here if you have any? interested to see how you did it.

I think I do somewhere, I will have to dig them up.

Post by **sloshy** » Tue Jan 20, 2009 4:48 pm

craz3d wrote: can you pm me/post pics of this here if you have any? interested to see how you did it.

Can't find the build pics, can't even remember if I took any or not

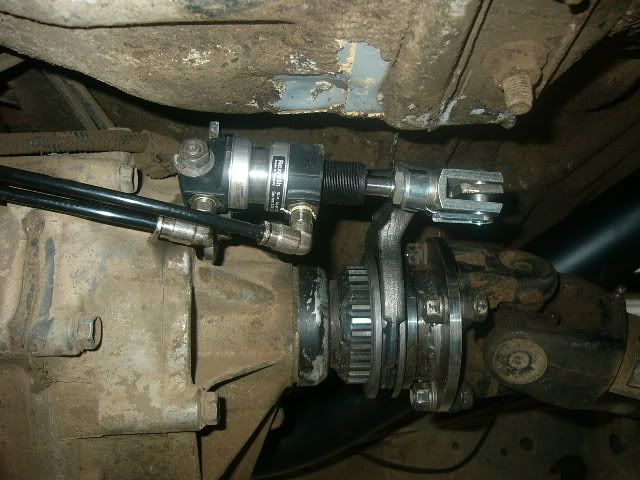

But found this one
