CAD badarse

Post by evanstaniland »

who is a cad badarse and can do this kinda stuff

these are showing a 3 link panhard setup
from here http://www.pirate4x4.com/forum/showthre ... 894&page=2

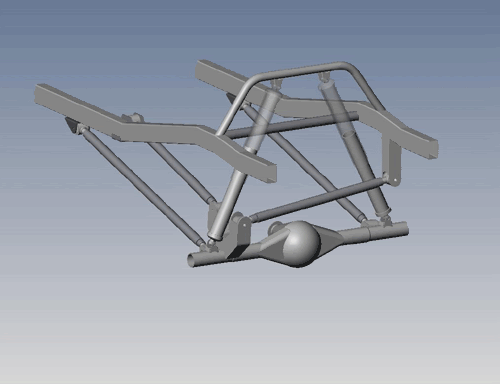

3rd angle view

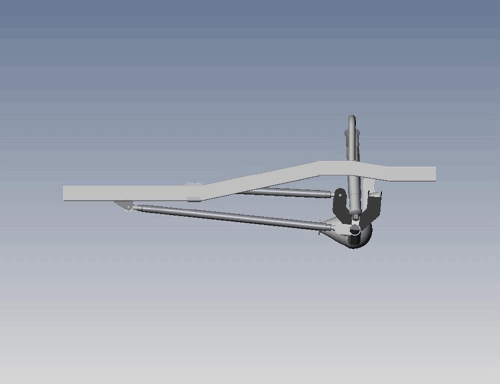

side on

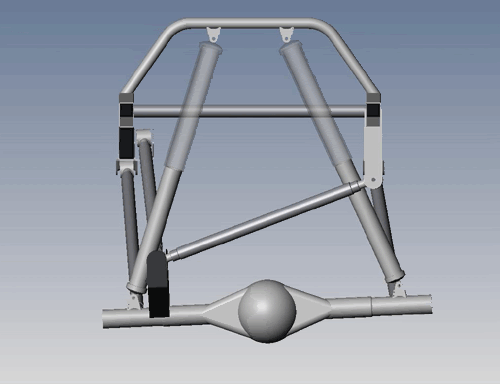

rear view


would be keen to see similar in 5-link front , a-frame, x-over (dobbin setup) etc
Evan..
Top
Posts: 1889
Joined: Mon Sep 20, 2004 10:23 pm
Location: Brisbane

Post by just cruizin' »

This is pretty simple on the design package such as inventer / solidworks etc.
Top
Posts: 5714
Joined: Fri Nov 22, 2002 3:55 pm
Location: Perth WA.

Post by nicbeer »

Sweet.

Be good if there was a program or setup that allowed you to add in variable to see what they did, eg anti squat and angles.

Nic
[url=http://www.outerlimits4x4.com/viewtopic.php?p=930942#930942&highlight=]Zook[/url]
U SUK Zook Built and Sold.
New rig is 97 80 DX. 2" list 33s
Top
Posts: 4990
Joined: Sun Oct 20, 2002 7:22 pm
Location: Qld, Hilux Country

Contact:
Contact bubs

Post by bubs »

yeap, me :cool:
http://www.budscustoms.com.au
Like us and follow on facebook for up to date information of what we are working on and great random specials!

Custom Parts & Fabrication!
Ph: 0417 708 598
Top
Posts: 1170
Joined: Tue Jun 01, 2004 4:27 pm
Location: Goodna, Queensland

Post by Bartso »

can we download a program somewhere for that?
MUD BEERS & MAYHEM 4x4 & SOCIAL Group
[url=http://www.fourbys.com.au/]Fourby's tyre and mechanical[/url]
[url=http://www.4wdmonthly.com.au/forum/showthread.php?t=24441/]My build up for ttc[/url]
Top
Posts: 1254
Joined: Mon May 16, 2005 8:21 pm
Location: Sth Brissy

Contact:
Contact LuxyBoy

Post by LuxyBoy »

just cruizin' wrote:This is pretty simple on the design package such as inventer / solidworks etc.
I tryed and it wasn't that simple for a noob
Kind Regards,
Brad
Top
User avatar
lay80n
God Of Emo
Posts: 7350
Joined: Sun Aug 24, 2003 7:04 pm
Location: Newy, home of the ZOOK (Rockin the 'diff)

Contact:
Contact lay80n

Post by lay80n »

Once you get used to using 3d design software like inventor or proEngineer/wildfire 3 then its not too hard, just getting the basics takes a bit of time.


Layto....
[quote="v840"]Just between me and you, I actually really dig the Megatwon, but if anyone asks, I'm going to shitcan it as much as possible! :D[/quote]
Top
Posts: 6314
Joined: Wed Jun 18, 2003 9:49 am
Location: Newcastle, NSW

Contact:
Contact Hekta

Post by Hekta »

RUFF wrote:I have no idea what you guys are talking about. It sounds like something a person that only thinks about building stuff would use :D
:lol:
wtf is an acronym

[color=yellow]Ctrl + W[/color]
Top
Posts: 3722
Joined: Sat Jan 18, 2003 7:32 pm
Location: perth wa

Post by bazooked »

i hate to say it but it aint goin to work properly, all the diff oil will run out of the open ends......................... :finger:
buggy time............
Top
User avatar
stu
Posts: 913
Joined: Wed Jan 22, 2003 8:08 am
Location: brisbane

Post by stu »

well im seeling the chassis, cross member and links all straight but the axle isn't in comparison....the left side is lower.

but good work anyway
i don't need no stinking quote for my sig. line!
Top
User avatar
RAY185
Resident Terrorist
Posts: 4278
Joined: Fri May 21, 2004 9:37 am
Location: Driving Barnsey's mum to bingo

Post by RAY185 »

bazooked wrote:i hate to say it but it aint goin to work properly, all the diff oil will run out of the open ends......................... :finger:
Not to mention the lack of a tailshaft. Maybe there is a hamster inside running on the crownwheel. mmm, hamster. :D
Top
Posts: 1255
Joined: Thu Jul 03, 2003 8:07 pm
Location: Coffs Harbour

Post by STUMPY »

That isn't too hard to do. I'm now quite competent with solidwroks. like with all things, it just takes a bit of time.
DX80 35's twin locked turbo diesel = TANG
www.jaybeecanvas.com
Top
Posts: 56
Joined: Tue Sep 20, 2005 3:20 am

CAD

Post by 90pickup »

From where do you got Solidworks??????Cheers
Top
Posts: 500
Joined: Tue Nov 04, 2003 2:00 am
Location: Canada

Post by red90 »

nicbeer wrote:Sweet.

Be good if there was a program or setup that allowed you to add in variable to see what they did, eg anti squat and angles.

Nic
Strangely enough there is!!!

4 link
http://mysite.verizon.net/triaged/files ... nkV3.0.zip

3 link
http://mysite.verizon.net/triaged/files ... 0bBETA.zip
[color=red]1991 Landrover 90 ex-MOD[/color]
Top
