GQ Steering Boxes

Post by LOCKEE »

I have twisted the sector shaft in the late model GQ Box.

Caused by an impact that also broke a CV and bent the housing.

Anybody have a damaged box with a good sector shaft?

Any other ideas?
Top
Posts: 167
Joined: Sun May 22, 2005 5:59 am

Post by harvey »

any other ideas?

would it be possible to exchange it with a GU box?
Top
Posts: 542
Joined: Wed Apr 28, 2004 10:28 am
Location: pomona,sunshine coast

Contact:
Contact GRINCH

Post by GRINCH »

common prob with gq boxes gu are stronger and tighter turning circle, im pretty sure the gu box bolts straight up
Top
Posts: 574
Joined: Wed Aug 17, 2005 11:49 am
Location: NZ

Post by nzdarin »

A late model GQ / GU box is a lot bigger and will bolt straight in. All you need to do is remove the clamp that holds the 2 oil lines together on top of the box. It isn't really needed as it is right where they bolt to the box.
Top
Posts: 655
Joined: Fri Nov 22, 2002 8:00 am
Location: Cranbourne, Victoria

Post by bundyrum4x4 »

I already have the late GQ Box.

Lockee
89 Maverick LWB ute, Turbo Deisel, 6hp High Mount, 36" Peeds, lockers etc

GU 4.5, 35's etc
Top
Posts: 574
Joined: Wed Aug 17, 2005 11:49 am
Location: NZ

Post by nzdarin »

Oops, should have read clearer. I have a 96 box in my winch truck and as far as I can tell it is the same as a GU. I have a 94 box as a spare and that is the same, so with that reasoning, I believe that the 94 on (ie when they added the extra side lights) has the same steering box as a GU. BUT I could have it all wrong
Top
Posts: 1090
Joined: Mon Jun 02, 2003 6:58 pm
Location: Hobart

Contact:
Contact DR Frankenstine

gq

Post by DR Frankenstine »

My 98 GQ cab chassis has a GU box in it
Remember some days your the pigeon and other days your the statue
Top
Posts: 1153
Joined: Sat Apr 24, 2004 10:17 am
Location: Gold coast QLD

Post by Madmac »

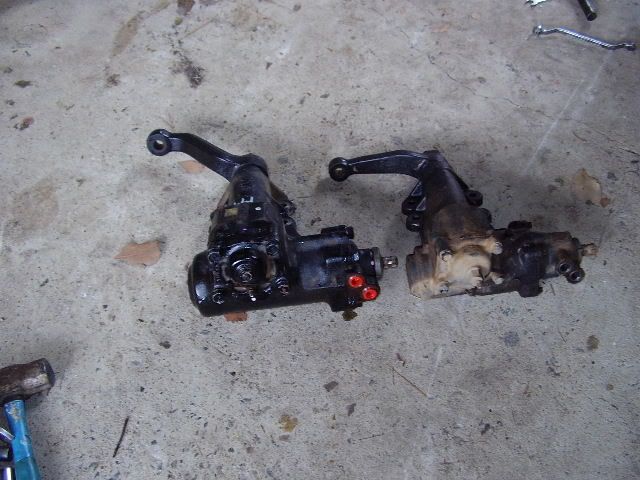

ive just fitted a GU box to mine, my gq shaft was twisted too and it was pissing fluid out. the GU box is physically bigger and stronger. it bolts straight to the GQ chassis, you need an adjustable draglink though. as the tie rod end drops in through the top of the pitmanm arm rather than from below on the GQ. the GUs pitmarn hangs about 2 inchs lower than the GQ. the GU pitman arm is also a lot chunkier than the GQ. i was told that the GQ and GU pitman arms are not interchangable due to a different ammount of splines. the GQs tie rod end is a slightly different taper than the GU, i was told by some that it wouldnt fit the GU and others said it was close enough. i gave it a try and it seemed OK, and so far it doesnt seem to have moved at all. heres a couple of pics of the GQ box and the larger GU unit


Top
Posts: 574
Joined: Wed Aug 17, 2005 11:49 am
Location: NZ

Post by nzdarin »

The steering box scavenged of my road truck (96) to keep the winch truck racing was the same as the GU but the pitman arm was the same as the GQ box I took off? Does this mean all you need is the late model GQ pitman arm to enable a GU box to bolt in?
93 Nissan Pathfinder / Terrano Turboed VH45, GQ Trans and T-case, coil overs, hydraulic winch and fair bit of other stuff. (Currently a pile of parts in the workshop)
Top
Posts: 527
Joined: Fri Apr 23, 2004 5:43 am
Location: Auckland, NZ

Post by GQ TROL »

No, because they've each got a different number of splines.
Top
Posts: 1072
Joined: Thu Jun 17, 2004 4:38 pm
Location: Port Macquarie

.....

Post by JemmyBubbles »

I did a similar thing to mine...

Rather then getting a GU box I went for an ultra late GQ box. It is much bigger than my previous box and closely resembles a GU box minus the pitman arm difference..

Perhaps consider one of these..
[quote="MSCHIF"]SPUA its like shaving a barbie dolls head, amusing but pointless.[/quote]
Top
Posts: 1119
Joined: Wed Apr 14, 2004 10:03 am
Location: Melbourne, looking at the hills for snow

Post by LOCKEE »

bundyrum4x4 wrote:I already have the late GQ Box.

Lockee
Posted: Fri Jun 30, 2006 3:43 pm

--------------------------------------------------------------------------------

I did a similar thing to mine...

Rather then getting a GU box I went for an ultra late GQ box. It is much bigger than my previous box and closely resembles a GU box minus the pitman arm difference..

Perhaps consider one of these..


__________________________________________________________

Sorry for the confusion, I have twisted two sector shafts in the late GQ Boxes. Am looking for another of those boxes, the rooting around and the fact that GU's seem to break pitman arms instead of twisting worries me.
Top
Posts: 502
Joined: Thu Dec 01, 2005 12:09 pm
Location: Cairns

Post by fnqcairns »

My 96 also has the GU box with a GQ shaped arm.
*JUST LUV IT* 96 GQ LWB TD4.2, Cav, Kings, Dobinsons, Motorguard, Enginesaver, 400 pro, Cooper ST's (rolls eyes), fleetguard oil filters, Delo 400 engine oil, Delo ESI gearbox oil and an RTC.
Top
Posts: 592
Joined: Wed Apr 19, 2006 8:19 pm
Location: ipswich

Post by rover1 »

never heard of anyone breaking a GU box.
cheers Pete.

its the skinny pedal
Top
Posts: 1403
Joined: Fri Jul 11, 2003 7:59 pm
Location: Melbourne

Post by DaveS3 »

rover1 wrote:never heard of anyone breaking a GU box.
Have one in a mates garage floor with a snaped shaft.
Land Rover Discovery - GQ conversion underway
Top
Posts: 1119
Joined: Wed Apr 14, 2004 10:03 am
Location: Melbourne, looking at the hills for snow

Post by LOCKEE »

So anyone have a late big GQ or GU Box available?
Top
Posts: 3054
Joined: Mon Nov 03, 2003 4:30 pm
Location: Melbourne

Post by hottiemonster »

DaveS3 wrote:
rover1 wrote:never heard of anyone breaking a GU box.
Have one in a mates garage floor with a snaped shaft.
which shaft is snapped and how was this done?
Gq ute new built
Top
Posts: 1403
Joined: Fri Jul 11, 2003 7:59 pm
Location: Melbourne

Post by DaveS3 »

Full noise into a log :lol: The splined shaft out of the box.

BTW, Lockee if you find a few I need one to get a truck going for the Ateco

Dave.
Land Rover Discovery - GQ conversion underway
Top
Posts: 446
Joined: Wed Jun 30, 2004 12:14 pm
Location: Perth

Post by bulldogy »

So what box is the bigger GQ 1 and from what model and years? but with the same pitman arm??
May need this as im runnin 37s now.

Just need to know what model eg 4.5efi or if all the late gqs came with them

Thanks dave
Top
Posts: 98
Joined: Thu Aug 04, 2005 6:57 pm
Location: Sydney

Post by JeSTeROCK »

I've got a 92 steering box with an adjustable drag link

I was wondering if it would be a good idea to change to a GU model box to bring the drag link above the pitman arm to make the drag link and panhard parallel

Anyone done it for this reason ?

6" lift 88 SWB GQ
88 GQ SWB 6" Lift 35s + a few scars
Top
Posts: 592
Joined: Wed Apr 19, 2006 8:19 pm
Location: ipswich

Post by rover1 »

it doesn't change the angle much.
with the gq box the steering arm goes underneath the pitman arm.
with the gu box it goes on top.
cheers Pete.

its the skinny pedal
Top
Posts: 1119
Joined: Wed Apr 14, 2004 10:03 am
Location: Melbourne, looking at the hills for snow

Post by LOCKEE »

I got another late GQ Box.

I might be able to get sector shafts made for the late box if enough people are interested.

I need one, Dave S3 needs one, who else has a damaged shaft and whould pay around $250 for another sector shaft?
Top
Posts: 1119
Joined: Wed Apr 14, 2004 10:03 am
Location: Melbourne, looking at the hills for snow

Post by LOCKEE »

I got another late GQ Box.

I might be able to get sector shafts made for the late box if enough people are interested.

I need one, Dave S3 needs one, who else has a damaged shaft and whould pay around $250 for another sector shaft?
Top
Posts: 1119
Joined: Wed Apr 14, 2004 10:03 am
Location: Melbourne, looking at the hills for snow

Post by LOCKEE »

DaveS3 wrote:Full noise into a log :lol: The splined shaft out of the box.

BTW, Lockee if you find a few I need one to get a truck going for the Ateco

Dave.
If I could get new sector shafts made for around $250, would anyone be interested?
Top
Posts: 1119
Joined: Wed Apr 14, 2004 10:03 am
Location: Melbourne, looking at the hills for snow

Post by LOCKEE »

Sorry about the reposts.

Bloody debug messages.
